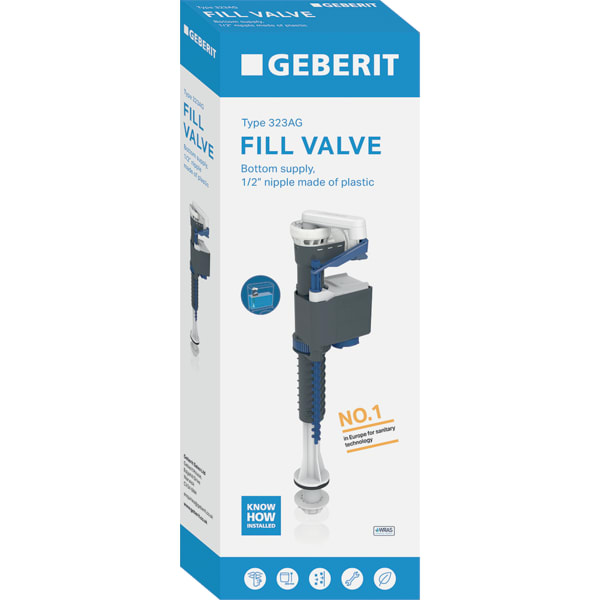

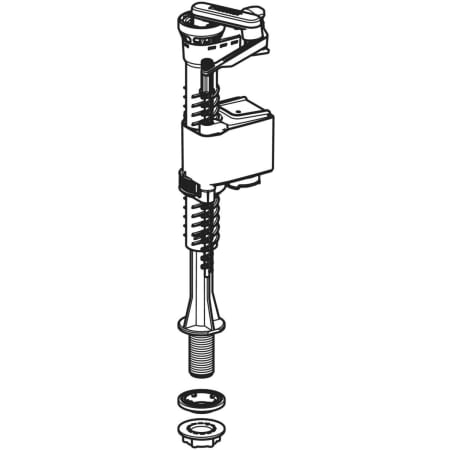

Geberit Type 323AG fill valve, bottom water supply connection, 1/2", nipple made of plastic

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Replaces art. no. 136.762.00.1, 281.221.00.1, 281.222.00.1

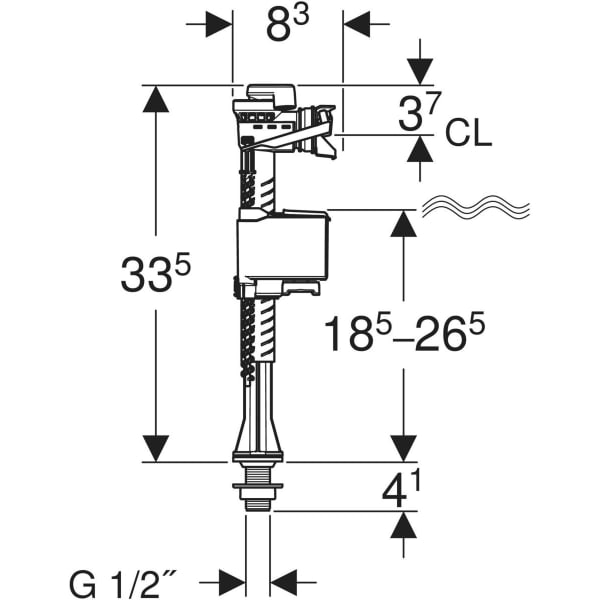

Art. no.	136.760.00.1
G	1/2 ″

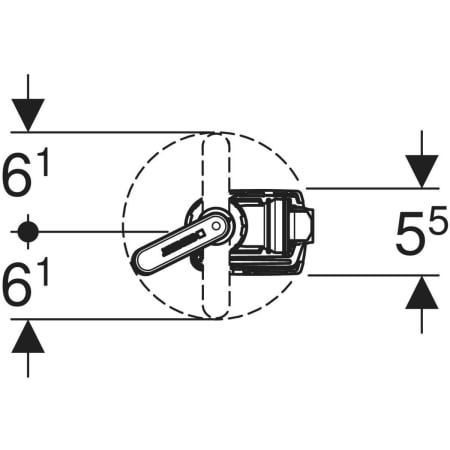

B	5.5 cm

Replaces art. no. 245.896.00.1

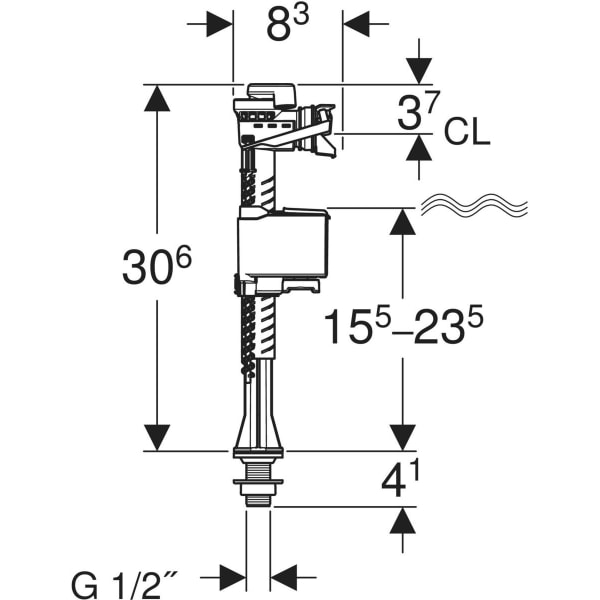

Art. no.	136.761.00.1
G	1/2 ″
B	5.5 cm

Technical data

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Storage temperature	≤ 40 °C	Storage temperature ≤ 40 °C
Water temperature max.	25 °C	Water temperature max. 25 °C
Flow rate at 50 kPa / 0.5 bar	0.06 l/s	Flow rate at 50 kPa / 0.5 bar 0.06 l/s

Flow rate at 300 kPa / 3 bar	0.17 l/s	Flow rate at 300 kPa / 3 bar 0.17 l/s
Minimum flow pressure	0.1 bar	Minimum flow pressure 0.1 bar

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Storage temperature	≤ 40 °C	Storage temperature ≤ 40 °C
Water temperature max.	25 °C	Water temperature max. 25 °C
Flow rate at 50 kPa / 0.5 bar	0.06 l/s	Flow rate at 50 kPa / 0.5 bar 0.06 l/s
Flow rate at 300 kPa / 3 bar	0.17 l/s	Flow rate at 300 kPa / 3 bar 0.17 l/s
Minimum flow pressure	0.1 bar	Minimum flow pressure 0.1 bar

Application purposes

Click on an application purpose to search more products

For Geberit exposed cisterns with bottom water supply connection For ceramic cisterns For Geberit low-height concealed cisterns For greywater and rainwater with pH value 5.5–9.5, if a filter system is used

For potable water For water supply connections 1/2''

Characteristics

Click on a characteristic to search more products

Adjustable filling height Water supply connection on the bottom Threaded nipple made of plastic Backflow prevention type AG (free outlet with overflow)

Fulfils requirements in accordance with BS 1212-4:2016, WRAS Section 2075
