Replaces art. no. 150.679.21.1
| Art. no. | 150.555.21.1 |
| Colour / surface | chrome / glossy |
| DN | 40 43 |

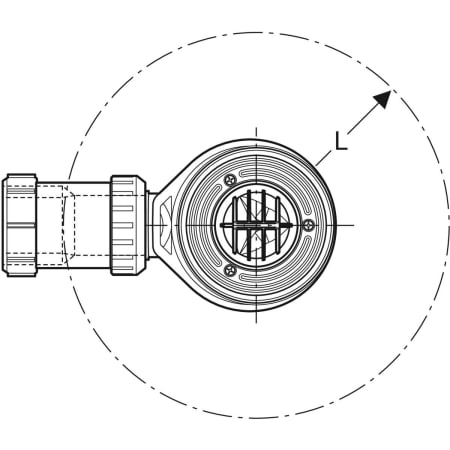

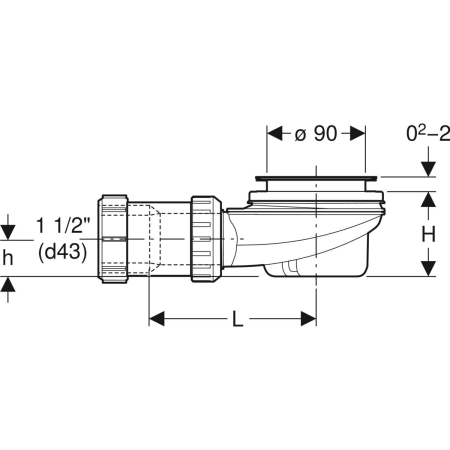

Geberit shower drain d90, with drain cover, depth of water seal 50 mm
My list (0)
Technical data
Discharge rate at 15 mm head of water 0.65 l/s |
Depth of water seal (mm) 50 mm |
Discharge rate at 15 mm head of water 0.65 l/s |
Depth of water seal (mm) 50 mm |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Drain cover
Trap
Comb insert
Fastening material
Adaptor ø 40 mm to G 1 1/2" (ø 43 mm)
Straight connector made of PE-HD
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Installation instructions | Shower drain 90 | - | |
Maintenance manual | Shower drain | - | |
Technical data sheet | d90 shower drain, 50 mm water seal depth | EN and 1 others |
Shower drain 90
Shower drain
d90 shower drain, 50 mm water seal depth
EN and 1 others
Other products
Spare parts
| # | Art. no. | Description | Remarks |
|---|---|---|---|
| 1 | 150.265.11.1 | Geberit drain cover d90, for shower drain, depth of water seal 30 / 50 mm: white alpine / glossy | |
| 1 | 150.265.01.1 | Geberit drain cover d90, for shower drain, depth of water seal 30 / 50 mm: white / matt | |
| 1 | 150.265.46.1 | Geberit drain cover d90, for shower drain, depth of water seal 30 / 50 mm: chrome / matt | |
