Elements for showers with wall drain

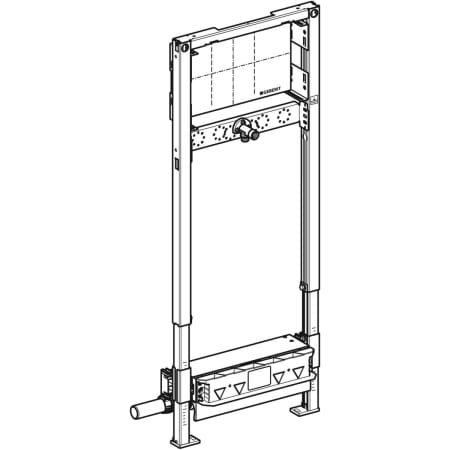

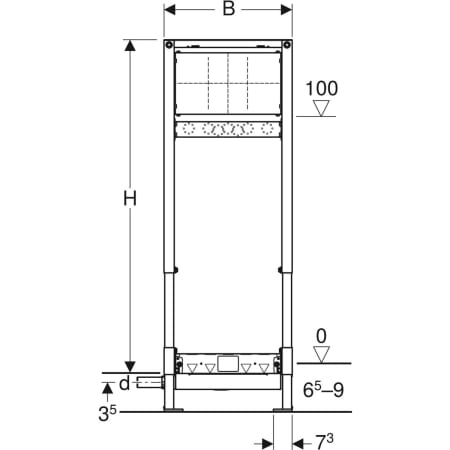

Geberit Duofix element for shower, 130 cm, with wall drain, wall-mounted tap, concealed, for screed height at inlet 65–90 mm

Thumbnail image

Thumbnail image

Thumbnail image

Thumbnail image

Thumbnail image

Main gallery image

Main gallery image

Main gallery image

Main gallery image

Main gallery image

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Additional information

Based on successful internal and external tests, Geberit confirms that the limitation of the area of application in accordance with DIN EN 1253-6 does not need to be taken into account
Natural stone tiles in the shower area may discolour

Technical data

Depth of water seal

30 mm

Application purposes

Click on an application purpose to search more products

For domestic bathrooms For receiving waste water from a single shower head For installation with a very low floor construction For drainage of floor-even showers For screed height ≥ 65 mm at inlet For drywall construction

For concealed or surface-mounted taps For concealed wall-mounted taps For composite seals For installation in part or room-height prewall installations For installation in room-height installation walls For installation in part or room-height Geberit Duofix system walls

Characteristics

Click on a characteristic to search more products

Statically self-supporting frame, protected against corrosion with powder coating Adjustable sealing level for tension-free sealing connection Premounted sealing fleece Sealing fleece, 10 cm circumferential, for connecting sealing systems Frame with ø 9 mm drilling holes for fastening in wood frame construction Non-slip leg supports Rotatable foot plates Foot plate depth suitable for installation in U-profiles UW 50 and Geberit Duofix system rails Mounting plate adjustable in height and depth

Mounting plate made of veneered wood, waterproof bonded Building material class B2 in accordance with DIN 4102-1, resp. class D-s2, d0 in accordance with EN 13501-3 Formaldehyde release class A in accordance with EN 1084, resp. Class E 1 according to EN 13936 Adjustable inlet height of trap Panelling thickness 10–40 mm Suitable for tile structures on floor 2–26 mm Suitable for tile structures on wall 2–35 mm Lateral drainage connection Self-adhesive sealing washer, fleece-laminated

Scope of delivery

Straight connector made of PE-HD, ø 40 mm
Elbow tap connector Rp 1/2" / R 1/2", compatible with MF
Sealing washer
Sound insulation base
Insulating sleeve
Protection plug
Protection box cover with integrated outlet sheet
Fastening material

To order additionally

Ready-to-fit set

Documents

Document type	Documents	Language

Films

Spare parts

Elements for shower, with wall drain

Elements for shower, with wall drain

Elements for shower, with wall drain

2014 -

#	Art. no.	Description	Replacement for
1	111.892.00.1	Geberit Duofix hexagon head setscrew, self-cutting
2	241.804.00.1	Geberit Duofix crossbar for wall-mounted tap
3	465.034.00.2	Geberit elbow tap connector 90° set with male thread MF 1/2": CC499K, RMF=1/2″, Rp=1/2″, L=7.3cm	465.034.00.1

Open detail page

10 Articles
