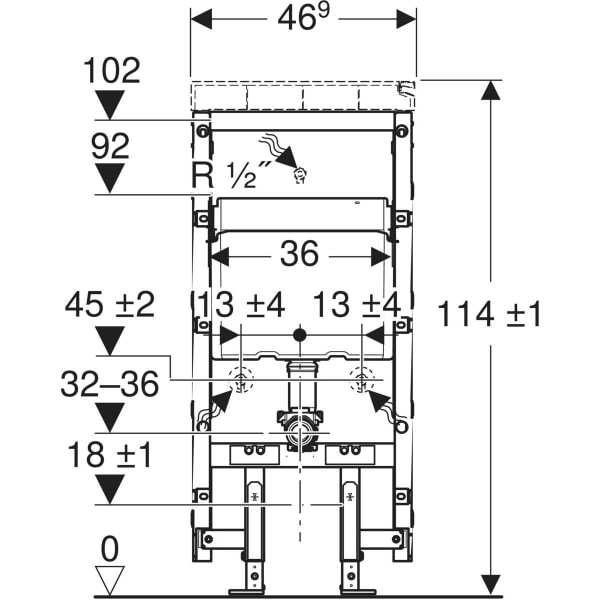

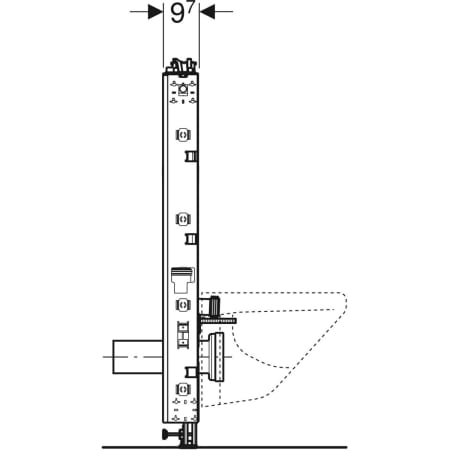

Geberit Monolith sanitary module for wall-hung WC, 114 cm, customer-specific
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Operating temperature, water max. 25 °C |
Flush volume, factory setting 6 / 3 l |
Flush volume large, adjustment range 4.5 / 6 l |
Flush volume small 3 l |
Flow rate at 3 bar 9.6 l/min |
Minimum flow pressure 0.5 bar |
Calculated flow rate 0.11 l/s |
Application purposes
Click on an application purpose to search more products
For renovations, conversions and new buildingsFor wall inlets with inlet height > 23 cmFor replacing low-level exposed cisternsFor replacing half-high level exposed cisternsFor replacing wall-hung WCs with close-coupled exposed cisternFor replacing wall-hung WCs with pressure flushing valve
For Geberit AquaClean WC complete solutionsFor replacing wall-hung WCs with concealed cistern with maximum service opening height < 109 cmFor connecting Geberit AquaClean WC enhancement solutions, with accessoriesFor mounting on finished floorsFor installation in front of drywalls or solid wallsFor compensating the offset between WC connections and wall drains using a stepped straight connector for wall-hung WCs
Characteristics
Click on a characteristic to search more products
Scope of delivery
Water supply connection set with 2 angle stop valves, 1/2"
Flush bend extension 160 mm
Sleeve made of EPDM, ø 44 / 55 mm
Straight connector made of PE-HD, ø 90 mm
Adaptor socket made of PE-HD, ø 90 / 110 mm
2 threaded rods M12
Base cover
6 fastening pins

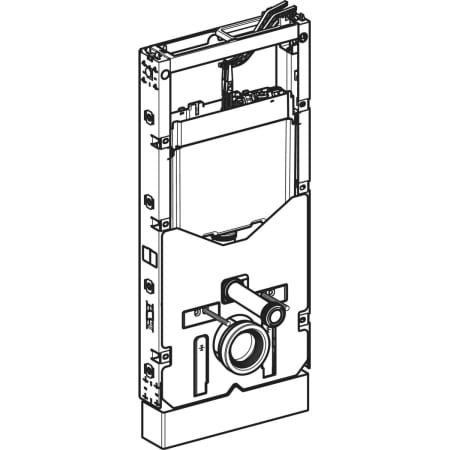

Support frame
Fastening material for drywall
Fastening material for installation in front of concealed cisterns
Fastening material
To order additionally
Set of cistern lid with side claddings, for Geberit Monolith sanitary module for wall-hung WC, 114 cm, customer-specific
Documents
Your input does not return any results
Spare parts
Geberit Monolith sanitary modules for floor-standing WC and wall-hung WC, 114 cm
Geberit Monolith sanitary modules for floor-standing WC and wall-hung WC, 114 cm
2016 -
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 243.440.TA.1 | Cistern lid for Geberit Monolith sanitary module for WC: aluminium brushed | 242.386.TA.1 | |
| 1 | 244.937.00.1 | Cistern lid for Geberit Monolith sanitary module for WC: black chrome / aluminium brushed | ||
| 2 | 245.509.00.1 | Mounting clip for Type 380 fill valve for Geberit Monolith sanitary module | ||
