Replaces art. no. 111.622.00.1

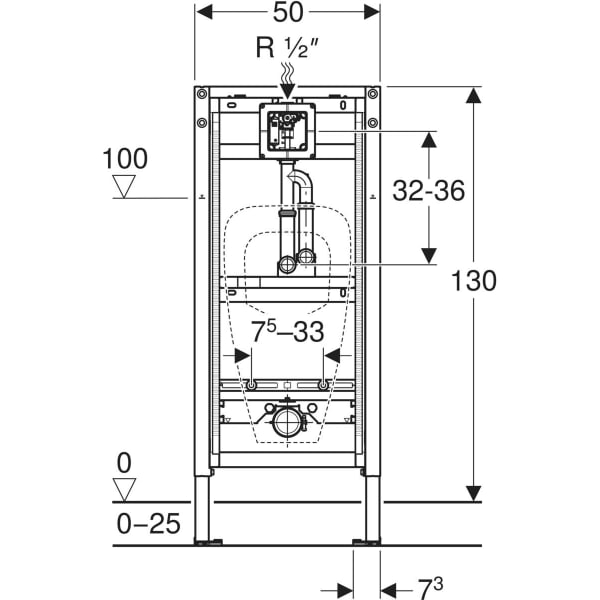

| Art. no. | 111.622.00.2 |
| B | 50 cm |
| H | 130 cm |

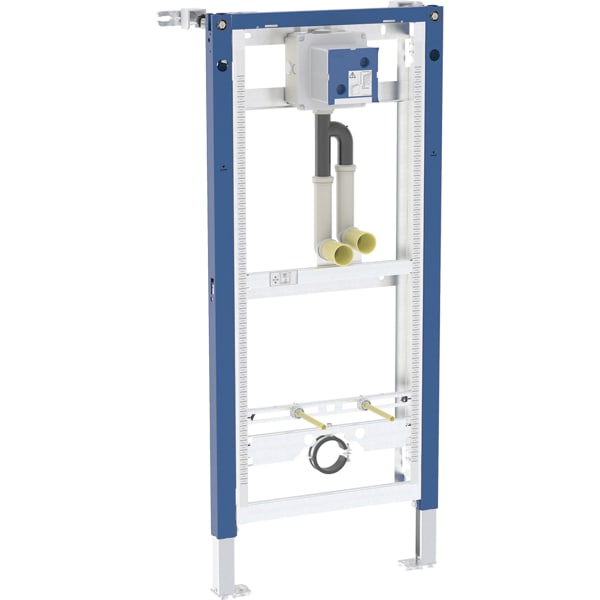

Geberit Duofix element for urinal, 130 cm, universal, with pipe interrupter
My list (0)
Technical data
Flow pressure 1–8 bar |
Water test pressure max. 16 bar |
Test pressure air / inert gas max. 3 bar |
Water temperature max. 30 °C |
Flow rate at 100 kPa / 1 bar without flow limiter 0.3 l/s |
Flow rate at 100 kPa / 1 bar with flow limiter 0.18 l/s |
Product material Steel |
Height-adjustable Yes |
Flow pressure 1–8 bar |
Water test pressure max. 16 bar |
Test pressure air / inert gas max. 3 bar |
Water temperature max. 30 °C |
Flow rate at 100 kPa / 1 bar without flow limiter 0.3 l/s |
Flow rate at 100 kPa / 1 bar with flow limiter 0.18 l/s |
Product material Steel |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingWith pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studsAlternative fastening point for wall anchorsRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosionFlush bend fitted, with pipe interrupterConcealed housing for Geberit urinal flush controlsTerminal for electrical connection in concealed housingWater supply connection on the top, on the concealed housing
Premounted stop valve with throttleWith built-in conduit pipe to rinse the pipelineProtection box for service opening 10.5 x 10.5 cm can be cut to length without toolsFlush hose can be bentFlush hose with guide to prevent standing waterFastening for inlet ø 32 mm, height-adjustableFastening for connection bend, height-adjustable and sound-absorbingUrinal fasteners M8 width- and height-adjustableAdditional fastening possible for urinal with accessoriesCan be refitted with accessories to fit urinals with spray head
Scope of delivery
Water supply connection R 1/2"
Protection box with cover
2 wall anchors
Connection pipe between inlet ø 32 mm and urinal, with seal to urinal
Straight connector made of PVC, ø 50 mm
Urinal trap ø 50 mm, with seal on urinal
Fastening and protection material
