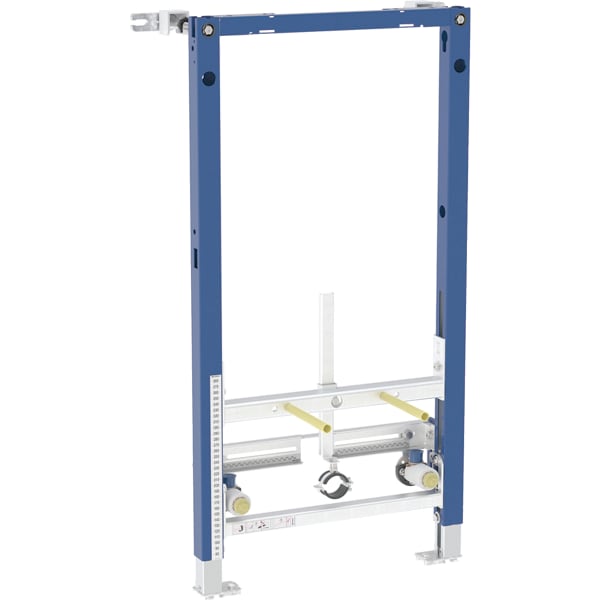

Geberit Duofix element for bidet, 98 cm, universal
Sections:
My list (0)
Technical data
Product material Steel |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingAlternative fastening point for wall anchorsRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosion
Fastening distance for wall-hung bidet 18 or 23 cmHeight-adjustable bidet fasteningFastening for connection bend, height-adjustable and sound-absorbingTap attachments adjustable in width and heightSelf-adhesive sealing washer, fleece-laminatedProtection plug for one-time pressure test with cold water up to a maximum of 15 bar / 1500 kPa
Scope of delivery
2 wall anchors
2 angle stop valves 1/2"
2 elbow tap connectors Rp 1/2" / R 1/2", compatible with MF
2 sealing washers
2 sound insulation bases
2 insulating sleeves
Fastening and protection material
Documents
Your input does not return any results
Spare parts
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 111.892.00.1 | Geberit Duofix hexagon head setscrew, self-cutting | Multipack | |
| 2 | 465.034.00.2 | Geberit elbow tap connector 90° set with male thread MF 1/2": CC499K, RMF=1/2″, Rp=1/2″, L=7.3cm | 465.034.00.1 | |
| 2.1 | 602.287.00.2 | Geberit elbow tap connector 90° with male thread MF 1/2": CC499K, RMF=1/2″, Rp=1/2″, L=7.3cm | 602.287.00.1 | |
