Articles
Click on the icon with the 3 dots to have more options for each item.
Replaces art. no. 111.543.00.1
| Art. no. | 111.543.00.2 |
| B | 50 cm |
| H | 82 cm |

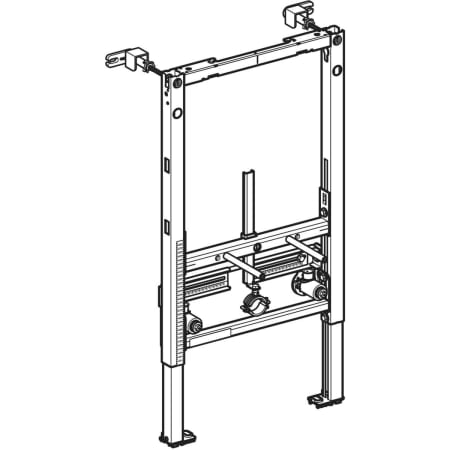

Geberit Duofix element for bidet, 82 cm, universal
My list (0)
Technical data
Product material Steel |
Height-adjustable Yes |
Product material Steel |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingAlternative fastening point for wall anchorsRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosion
Fastening distance for wall-hung bidet 18 or 23 cmHeight-adjustable bidet fasteningFastening for connection bend, height-adjustable and sound-absorbingTap attachments adjustable in width and heightSelf-adhesive sealing washer, fleece-laminatedProtection plug for one-time pressure test with cold water up to a maximum of 15 bar / 1500 kPa
Scope of delivery
2 wall anchors
2 angle stop valves 1/2"
2 elbow tap connectors Rp 1/2" / R 1/2", compatible with MF
2 sealing washers
2 sound insulation bases
2 insulating sleeves
Fastening and protection material
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Installation instructions | Angle stop valve | - | |
Installation instructions | Geberit Duofix bidet | - |
Angle stop valve
Geberit Duofix bidet
Other products
Spare parts
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 111.892.00.1 | Geberit Duofix hexagon head setscrew, self-cutting | Multipack | |
| 2.3 | 216.197.00.1 | Geberit set of Taptite® screws (6 pc.) | ||
| 3 | 244.125.00.2 | Geberit Duofix set of foot plates | 244.125.00.1 | Die-cast zinc From 2025 range |
14 Articles
