| Art. no. | 244.510.00.5 New |

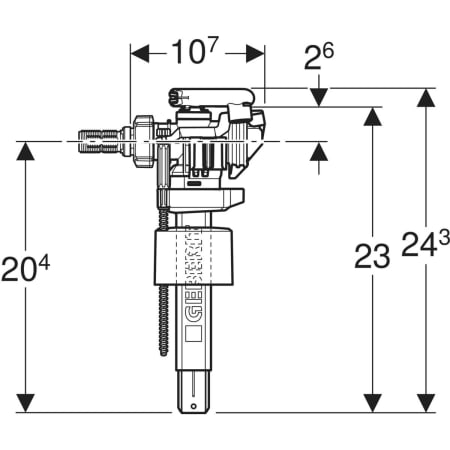

| B | 6 cm |
| H | 24.3 cm |
New
Geberit Type 383AG fill valve, lateral water supply connection, 3/8", nipple made of brass
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Storage temperature ≤ 40 °C |
Water temperature max. 25 °C |
Flow pressure 0.1–10 bar |
Storage temperature ≤ 40 °C |
Water temperature max. 25 °C |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products

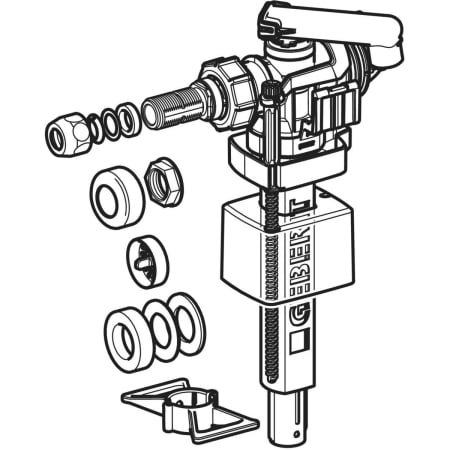

Scope of delivery
Filter for nipple / reinforced braided hose types 350 and 380 filling valves
Cone screw fitting
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Installation instructions | Fill valve type 383AG | - |
Fill valve type 383AG
Other products
Spare parts
| # | Art. no. | Description | Remarks |
|---|---|---|---|
| 1 | 240.710.00.1 | Geberit connection pipe for types 380 and 383 fill valves: H=10.6cm | |
| 2 | 245.988.00.1 | Geberit operating part set for type 383 fill valve | |
| 3 | 294.833.21.1 | Geberit cone screw fitting R 3/8″: chrome / glossy | |
