Fill valves for universal flushing cisterns
New

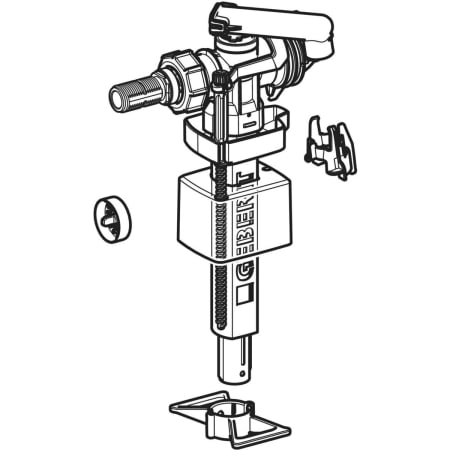

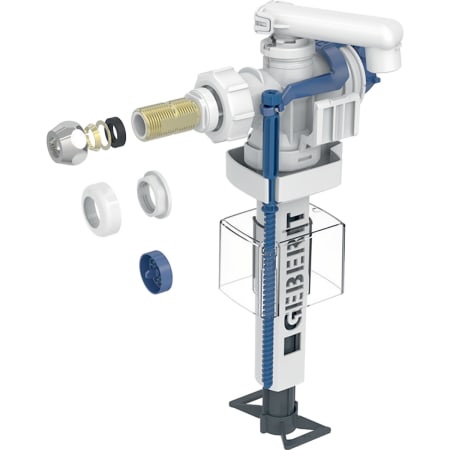

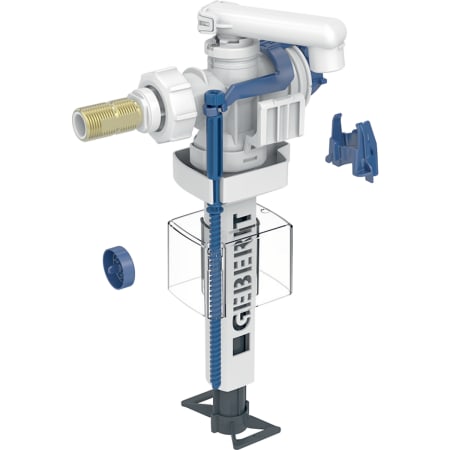

Geberit Type 383AG fill valve, lateral water supply connection, 3/8", nipple made of brass

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
244.595.00.5
New

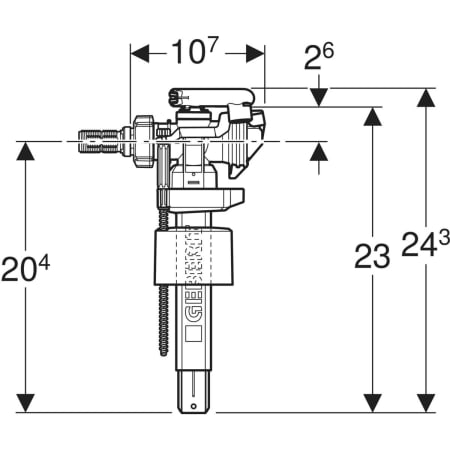

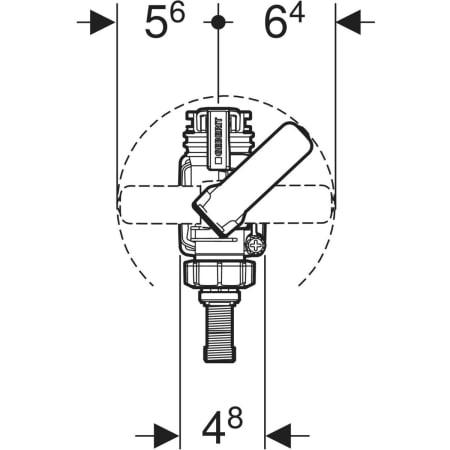

B

4.8 cm

H

24.3 cm

Technical data

Flow pressure

0.1–10 bar

Storage temperature

≤ 40 °C

Water temperature max.

25 °C

Application purposes

Click on an application purpose to search more products

For Geberit Monolith sanitary modules for WCFor Geberit concealed cisternsFor greywater and rainwater with pH value 5.5–9.5, if a filter system is usedFor potable water

Characteristics

Click on a characteristic to search more products

Adjustable filling heightThreaded nipple made of brassWater supply connection on the left/rightBackflow prevention type AG (free outlet with overflow)
Fulfils requirements in accordance with BS 1212-4:2016, WRAS Section 2075

Scope of delivery

  • Filter for nipple / reinforced braided hose types 350 and 380 filling valves
