Spare parts for: WC flush controls with pneumatic flush actuation, dual flush, concealed actuator
1997 - 2016
Sections:
Brand
Geberit
Type
HyTouch
| # | Art. no. | Description | Remarks |
|---|---|---|---|
| 1 | 242.401.00.1 | Geberit brass weight | |
| 2 | 240.574.00.1 | Geberit flushing device for WC flush control with pneumatic flush actuation, dual flush | |
| 2.1 | 880.328.11.1 | Geberit flushing device flange for flush valve, dual flush: white alpine | |
| 3 | 240.572.11.1 | Geberit hand-operated actuator for dual flush, for WC flush control with pneumatic flush actuation: white alpine | |
| 3 | 240.572.KA.1 | Geberit hand-operated actuator for dual flush, for WC flush control with pneumatic flush actuation: Housing: chrome-plated, Buttons: matt chrome-plated | |
| 3.1 | 243.661.00.1 | Geberit fastening frame for pneumatic actuator | |
| 4 | 240.575.00.1 | Geberit double pneumatic hose, blue | Length 2 m |
| 5 | 240.582.00.1 | Geberit concealed housing | |
| 6 | 241.413.21.1 | Geberit actuator for WC flush control with pneumatic flush actuation, dual flush, with locked nuts: chrom / glossy | |
| 6.1 | 242.548.00.1 | Geberit collar for hand-operated push button, for WC flush control with pneumatic flush actuation |
Additional information
- Only the listed articles are available
Valid for articles
115.942.11.1
115.942.KA.1
115.999.21.1
115.954.KA.1
Characteristics
Year of manufacture from 1997 |
Year of manufacture until 2016 |
Related spare parts
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 241.475.00.1 | Geberit angle stop valve for Delta concealed cisterns 8/12 cm | ||
| 1 | 242.414.00.1 | Geberit angle stop valve for Sigma concealed cistern 8 cm, Delta concealed cistern 12 cm, Alpha concealed cisterns 8/12 cm and Unica/UP700 concealed cisterns | For operation with hand wheel | |
| 1 | 246.175.00.1 | Geberit angle stop valve for Sigma/Delta concealed cistern 12 cm and Sigma/Alpha concealed cistern 8 cm | For use with hand wheel | |
30 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.269.00.1 | Geberit angle stop valve for Sigma/Omega/Alpha concealed cisterns 12 cm and Kappa concealed cistern 15 cm | 240.177.00.1 | |
| 1 | 240.847.00.1 | Geberit angle stop valve for Sigma/Omega/Alpha concealed cisterns 12 cm, Kappa concealed cistern 15 cm and Sigma/Alpha concealed cisterns 8 cm | ||
| 1.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | For use with hand wheel | |
39 Articles
Twinline concealed cisterns 8 cm (UP170, 110.700)
Twinline concealed cisterns 8 cm (UP170, 110.700)
1989 - 2016
| # | Art. no. | Description |
|---|---|---|
| 1 | 216.599.00.1 | Geberit angle stop valve for concealed cisterns UP170 / 110.700 / 10.400 / 10.700 / 10.800 / 110.620 / NUVO / UP130 / 110.800 |
| 1 | 240.644.00.1 | Geberit angle stop valve for Twinline concealed cisterns 8/12 cm and Kappa concealed cistern 15 cm (PE-X) |
| 2 | 240.233.00.1 | Geberit extension set for protection box of service opening |
30 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.269.00.1 | Geberit angle stop valve for Sigma/Omega/Alpha concealed cisterns 12 cm and Kappa concealed cistern 15 cm | 240.177.00.1 | |
| 1.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | ||
| 1.2 | 241.857.00.1 | Geberit counternut made of plastic | ||
37 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.851.00.1 | Geberit elbow tap connector | ||
| 2 | 240.853.00.1 | Geberit angle stop valve | ||
| 3 | 240.269.00.1 | Geberit angle stop valve for Sigma/Omega/Alpha concealed cisterns 12 cm and Kappa concealed cistern 15 cm | 240.177.00.1 | |
31 Articles

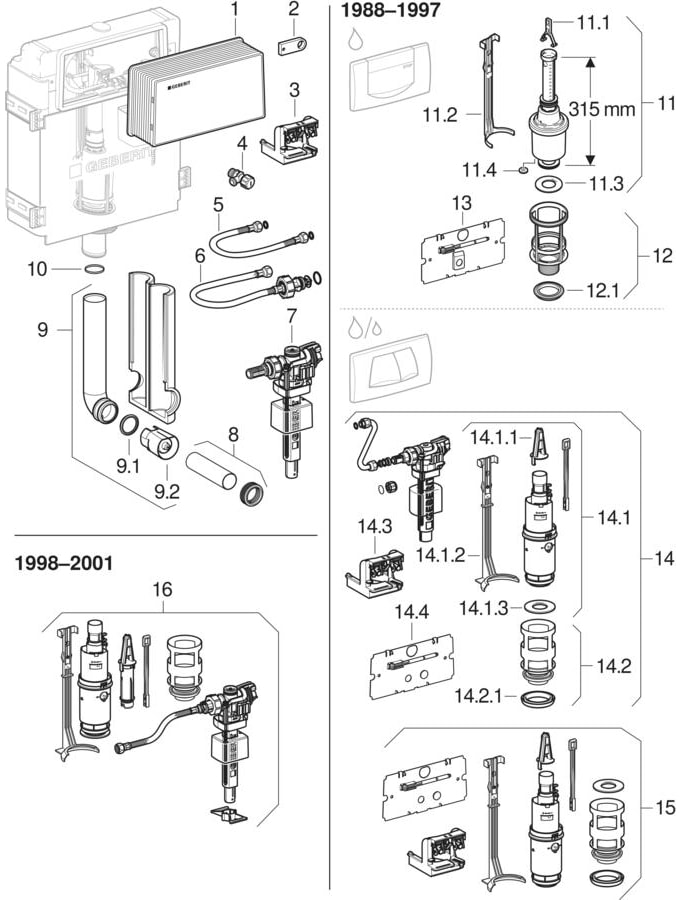

Twinline concealed cisterns 12 cm (UP130, 110.800)
Twinline concealed cisterns 12 cm (UP130, 110.800)
1988 - 2016
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.233.00.1 | Geberit extension set for protection box of service opening | ||
| 2 | 889.246.00.1 | Geberit fastening bracket for distance bolts | ||
| 3 | 240.510.00.1 | Geberit support block | ||
35 Articles
Kappa concealed cisterns 15 cm (UP120, Artline), also for PEX connector
Kappa concealed cisterns 15 cm (UP120, Artline), also for PEX connector
1998 - 2025
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.206.00.1 | Geberit protection plate for Kappa concealed cistern 15 cm | ||
| 2 | 240.079.00.1 | Geberit support block for Artline concealed cistern | ||
| 3 | 244.595.00.1 | Geberit Type 380AG fill valve, lateral water supply connection, 3/8", nipple made of brass | 242.984.00.1, 242.985.00.1 | |
30 Articles
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 240.269.00.1 | Geberit angle stop valve for Sigma/Omega/Alpha concealed cisterns 12 cm and Kappa concealed cistern 15 cm | 240.177.00.1 | |
| 1 | 240.847.00.1 | Geberit angle stop valve for Sigma/Omega/Alpha concealed cisterns 12 cm, Kappa concealed cistern 15 cm and Sigma/Alpha concealed cisterns 8 cm | ||
| 1.1 | 240.298.00.1 | Geberit spindle for angle valve with handwheel, left thread | For use with hand wheel | |
27 Articles
