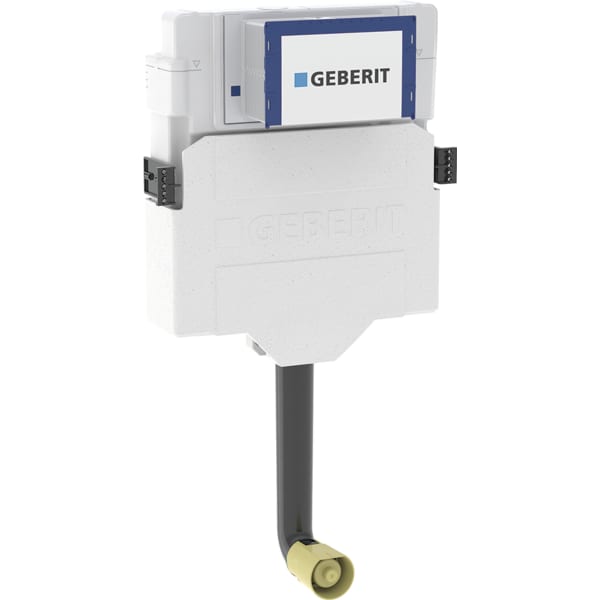

Geberit Sigma concealed cistern 12 cm, 6 / 3 litres, ship model, with front actuation

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
109.392.00.5
B

41 cm

H

51 cm

Additional information

  • For seawater operation, the functionality has to be ensured by increased maintenance (risk of corrosion).
  • Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low volume flush.
  • The cistern can be operated with used water (rainwater) provided it is passed through a filter system first

Technical data

Flow pressure

0.1–10 bar

Water temperature max.

25 °C

Flush volume, factory setting

6 / 3 l

Flush volume large, adjustment range

4 / 4.5 / 6 / 7.5 l

Flush volume small, adjustment range

2–4 l

Product material

Plastic

Application purposes

Click on an application purpose to search more products

Characteristics

Click on a characteristic to search more products

Scope of delivery

  • Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel

  • Protection box for service opening

  • Flush bend 90°

  • 2 fixing brackets

  • Fastening material
