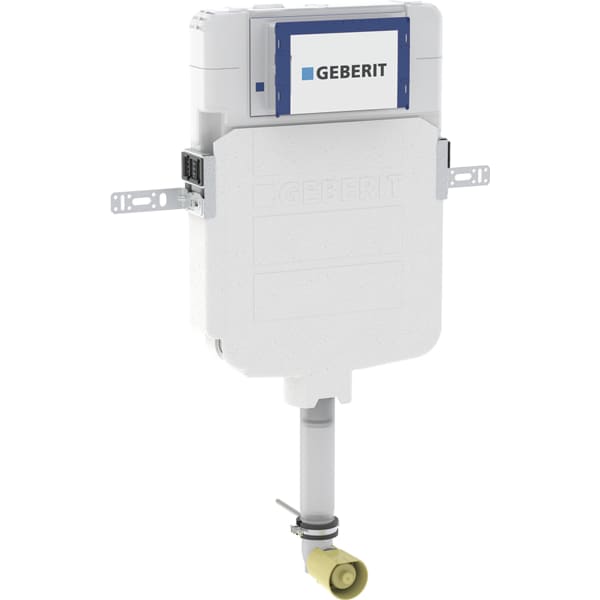

Geberit Sigma concealed cistern 8 cm, 6 / 3 litres

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Additional information

Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low volume flush.
The cistern can be operated with used water (rainwater) provided it is passed through a filter system first

Flow pressure

0.1–10 bar

Operating temperature, water max.

25 °C

Flush volume, factory setting

5.8 / 3 l

Flush volume small, adjustment range

2–4 l

Product material

Plastic

Click on an application purpose to search more products

Click on a characteristic to search more products

Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend 90°
Fastening for flush bend
Protection plug
Cup for flush volume reduction 4.5 / 3 l
Fastening material
2 fixing brackets

Your input does not return any results

Sigma concealed cisterns 8 cm, series 2016

2016 -

#	Art. no.	Description
1	242.414.00.1	Geberit angle stop valve for Sigma concealed cistern 8 cm
1.1	240.298.00.1	Geberit spindle for angle valve with handwheel, left thread
1.2	240.347.00.1	Geberit hand wheel for angle stop valve

28 Articles
