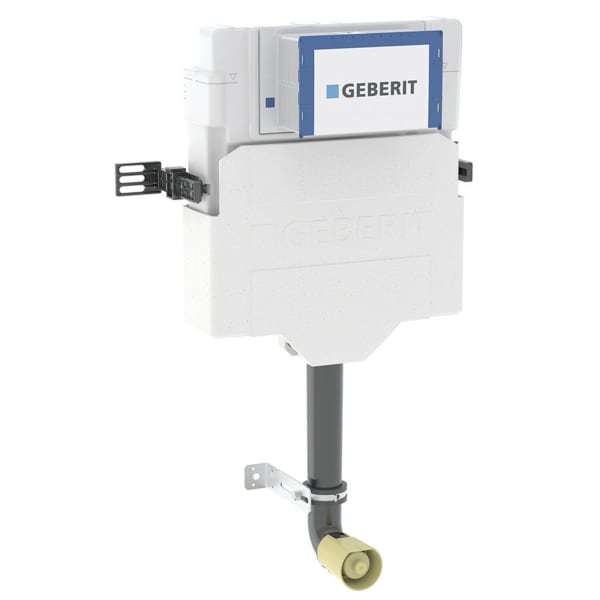

Geberit Sigma concealed cistern 12 cm, 6 / 3 litres

Thumbnail image
Thumbnail image
Thumbnail image
Thumbnail image
Main gallery image
Main gallery image
Main gallery image
Main gallery image

My list (0)


Articles

Click on the icon with the 3 dots to have more options for each item.

Technical data

Flow pressure

0.1–10 bar

Operating temperature, water max.

25 °C

Flush volume, factory setting

5.8 / 3 l

Flush volume small, adjustment range

2–4 l

Product material

Plastic

Application purposes

Click on an application purpose to search more products
For drywall constructionFor installation in part or room-height prewall installationsFor installation in room-height installation wallsFor floor-standing WCs

Characteristics

Click on a characteristic to search more products

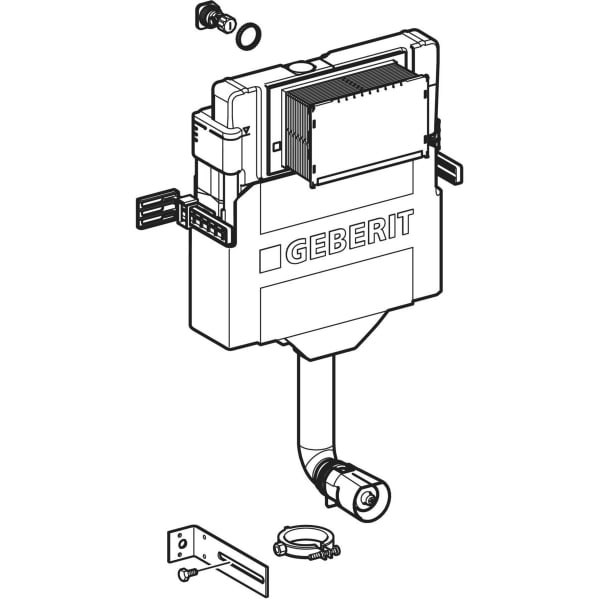

Scope of delivery

  • Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel

  • Protection box for service opening

  • Flush bend 90°

  • Fastening for flush bend

  • Protection plug

  • 2 slotted flat irons

  • 2 fixing brackets

  • Fastening material

  • Flush bend extension, ø 45 mm
