Frames for WCs
Phasing out

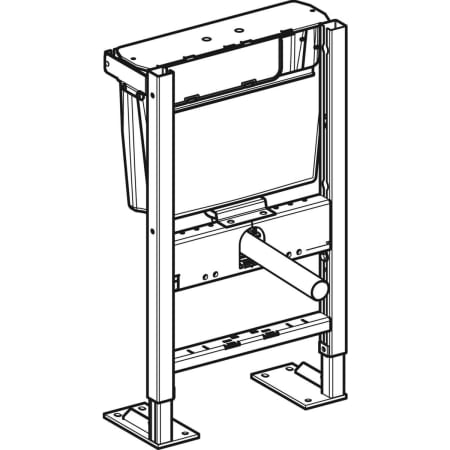

Geberit Duofix frame for wall-hung WC, 79 cm, with low-height concealed cistern

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Phasing out

Has been replaced by art. no. 111.207.00.3, Replaces art. no. 111.207.00.1

Art. no.
111.207.00.2

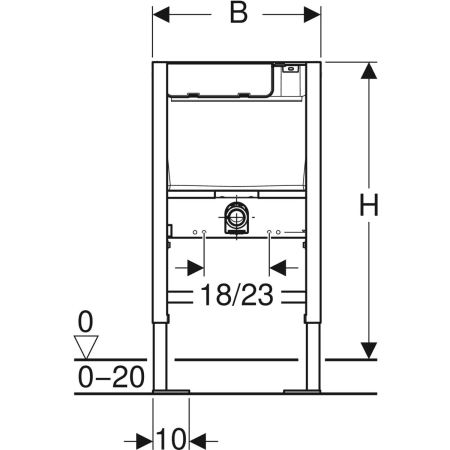

B

46.5 cm

H

79 cm

Additional information

  • For installation in bathroom furniture with full length front panel (not for use with front plinths)
  • For furniture with an internal dimension of 465 mm wide, the item can not be used with side plinths
  • This frame has been especially designed for use with furniture and furniture clips only

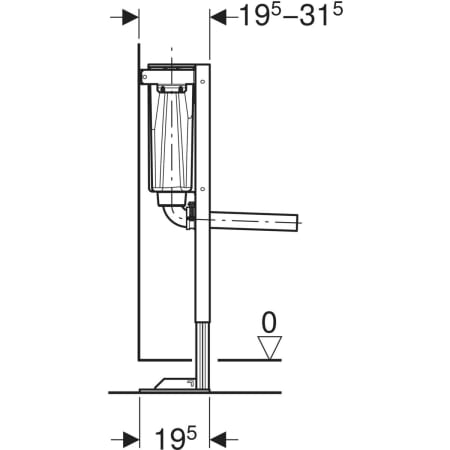

  • Includes extension brackets taking the depth up to 335 mm
  • This frame must not be installed behind the wall
  • The cistern can be operated with used water (rainwater) provided it is passed through a filter system first

Technical data

Flow pressure

0.1–10 bar

Water temperature max.

25 °C

Flush volume, factory setting

5.8 / 3 l

Height-adjustable

Yes

Application purposes

Click on an application purpose to search more products

For drywall constructionFor installation in bathroom furnitureFor installation in part-height prewall installationsFor wall-hung WCs with connection dimensions in accordance with EN 33:2011For wall-hung WCs with projection up to 62 cm
Not suitable for Geberit AquaClean AlbaNot suitable for Geberit AquaClean SelaFor dual flushFor floor constructions 0–20 cm

Characteristics

Click on a characteristic to search more products

Statically self-supporting frame, protected against corrosion with powder coatingFrame prepared for support brackets for WC ceramic appliances with small contact surfacesGalvanized feetFeet adjustable 0–20 cmWith large foot plates for raised power supply in floorsConnection bend can be mounted without tools at different depths, adjustable range 45 mm
Fastening for connection bend, sound-absorbingFlush actuation pneumaticFlush pipe connection with compression jointWater supply connection on the bottom leftWater supply connection 1/2”

Scope of delivery

  • 2 threaded rods M12

  • Fastening material

  • Connection bend 90° made of PE-HD, ø 90 mm

  • Adaptor socket made of PE-HD, ø 90 / 110 mm

  • Cup for flush volume reduction 4.0 / 2.6 l

To order additionally

Accessories

Geberit set of support brackets for WC ceramic appliances with small contact surfaces

Accessories

Geberit set of support brackets for WC ceramic appliances with small contact surfaces

111.847.00.1
