Wall drains

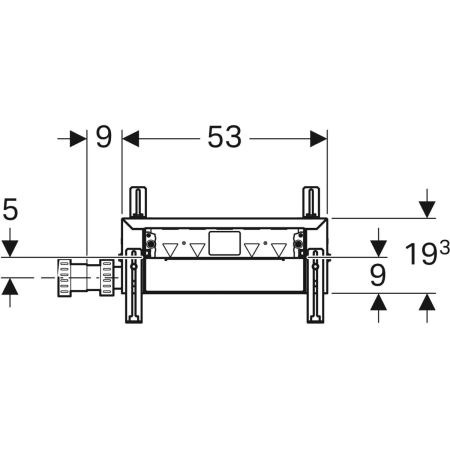

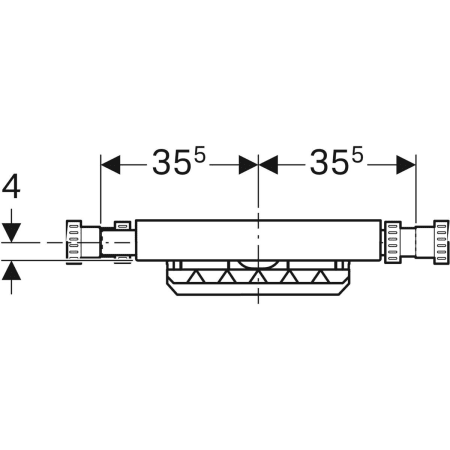

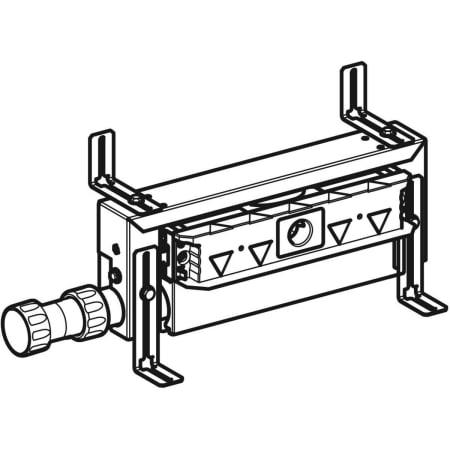

Geberit Kombifix element for shower, with CleanWall wall drain, for screed height at inlet 90–200 mm

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
457.538.00.1
DN

50

d, ø

55 mm

Additional information

  • Natural stone tiles in the shower area may discolour

Technical data

Depth of water seal (mm)

50 mm

Application purposes

Click on an application purpose to search more products

For domestic bathroomsFor drainage of floor-even showersFor solid walls, drywalls, or prewalls in solid and drywall constructionFor composite seals
For screed height ≥ 90 mm at inlet

Characteristics

Click on a characteristic to search more products

Quality-monitored in accordance with EN 1253-3Plaster thickness 5–30 mmSuitable for tile structures on floor 2–26 mmSuitable for tile structures on wall 2–35 mmHeight-adjustable element
Adjustable sealing level for tension-free sealing connectionLateral drainage connectionPremounted sealing fleeceSealing fleece, 10 cm circumferential, for connecting sealing systemsAdjustable inlet height of trap

Scope of delivery

  • Straight connector made of PE-HD, ø 50 mm

  • Adaptor ø 50 mm to G 2" (ø 55 mm)

  • Protection box cover with integrated outlet sheet

  • Fastening material

To order additionally

  • Ready-to-fit set

Accessories

Geberit ready-to-fit set for CleanWall wall drain, cover made of polished stainless steel

Accessories for wall drains

Geberit ready-to-fit set for CleanWall wall drain, cover made of polished stainless steel

154.342.00.1

Geberit ready-to-fit set for CleanWall wall drain, cover made of brushed stainless steel

Accessories for wall drains

Geberit ready-to-fit set for CleanWall wall drain, cover made of brushed stainless steel

154.336.FW.1

Geberit CleanWall collector profile for wall drain for shower

Accessories for wall drains

Geberit CleanWall collector profile for wall drain for shower

154.340.FW.1

Geberit ready-to-fit set for CleanWall wall drain, cover made of stainless steel, screwable

Accessories for wall drains

Geberit ready-to-fit set for CleanWall wall drain, cover made of stainless steel, screwable

154.337.FW.1

Geberit ready-to-fit set for CleanWall wall drain, cover made of plastic

Accessories for wall drains

Geberit ready-to-fit set for CleanWall wall drain, cover made of plastic

3 Articles

Geberit ready-to-fit set for CleanWall wall drain, tile-bearing, frameless

Accessories for wall drains

Geberit ready-to-fit set for CleanWall wall drain, tile-bearing, frameless

154.338.00.1

Geberit ready-to-fit set for CleanWall wall drain, tile-bearing, multi-piece

Accessories for wall drains

Geberit ready-to-fit set for CleanWall wall drain, tile-bearing, multi-piece

154.339.00.1

Documents

Kombifix element for shower with wall drain
Instructions for tiler, shower element
Cleaning shower drains

EN

Connecting flange

EN and 2 others
