Frames for washbasins
Phasing out

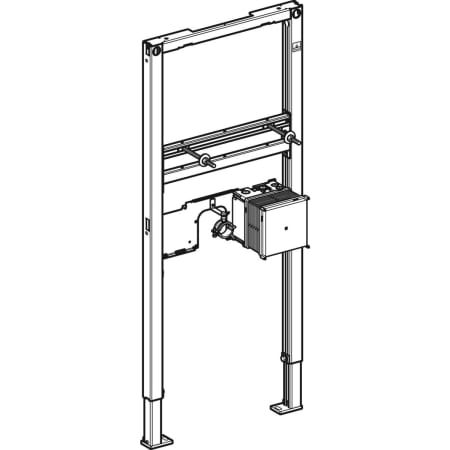

Geberit Duofix element for washbasin, 112 cm, electronic deck-mounted tap with concealed function box

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Phasing out

Has been replaced by art. no. 111.554.00.2

Art. no.
111.554.00.1

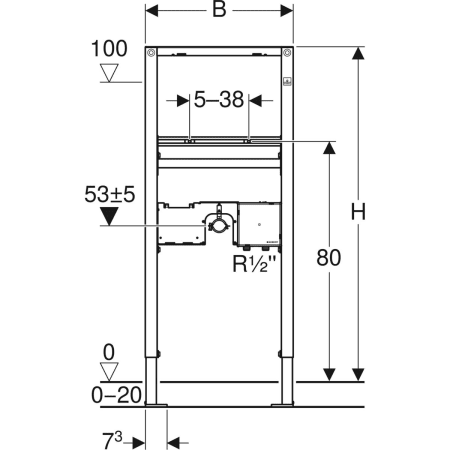

B

50 cm

H

112 cm

Additional information

  • For Geberit washbasin taps Piave and Brenta
  • Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame

Technical data

Product material

Steel

Height-adjustable

Yes

Application purposes

Click on an application purpose to search more products

For drywall constructionFor installation in part or room-height prewall installationsFor installation in room-height installation wallsFor installation in part or room-height Geberit Duofix system walls
For installation of washbasinsFor Piave and Brenta washbasin taps, deck-mounted, with concealed function boxFor floor constructions 0–20 cm

Characteristics

Click on a characteristic to search more products

Statically self-supporting frame, protected against corrosion with powder coatingFrame with ø 9 mm drilling holes for fastening in wood frame constructionGalvanized feetFeet adjustable 0–20 cmNon-slip leg supportsRotatable foot platesFoot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
Fastening distance for washbasin 5–38 cmWater supply connection compatible with MasterFix and MeplaFixWater supply connection on the bottom of concealed housingFastening for connection bend, height-adjustable and sound-absorbingConcealed housing for Geberit washbasin tap, deck-mounted, for concealed function box, premountedShut-off unit integrated in the concealed housingTerminal for electrical connection in concealed housing

Scope of delivery

  • 2 wall anchors

  • 2 threaded rods M10

  • Protection box with cover, for concealed housing

  • Fastening material

Accessories

Geberit Duofix fastening material for stud clearance 50–57.5 cm

Accessories

Geberit Duofix fastening material for stud clearance 50–57.5 cm

111.869.00.1

Geberit Duofix set of foot extensions for floor construction 20–40 cm

Accessories

Geberit Duofix set of foot extensions for floor construction 20–40 cm

111.848.00.1

Has been replaced by art. no. 111.848.00.2

Geberit Duofix set of wall anchors for single and system installation

Accessories

Geberit Duofix set of wall anchors for single and system installation

111.844.00.1

Geberit Duofix set of wall anchors for single installation

Accessories

Geberit Duofix set of wall anchors for single installation

111.815.00.1

Geberit cover plate for concealed function box

For washbasin taps

Geberit cover plate for concealed function box

116.425.11.1
