Frames for washbasins

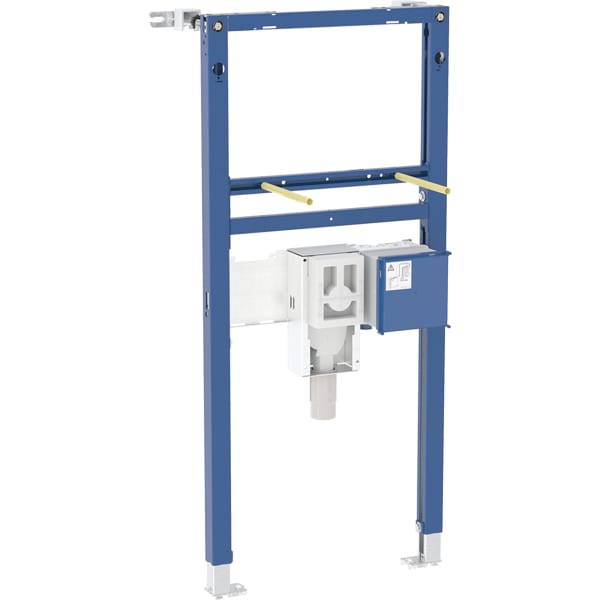

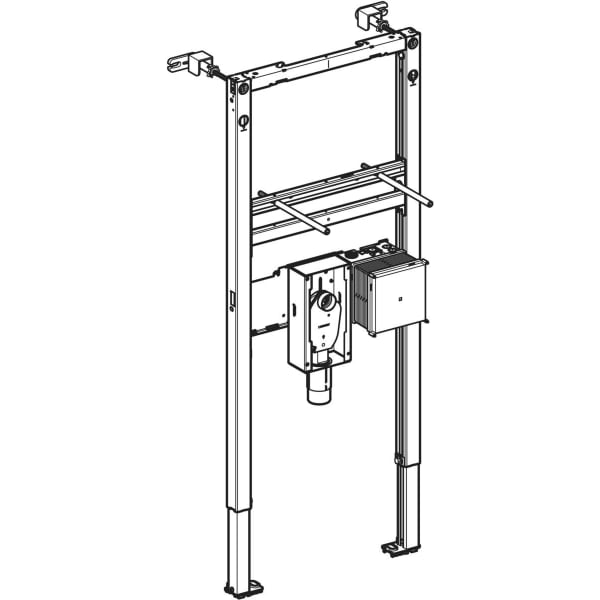

Geberit Duofix element for washbasin, 112 cm, electronic deck-mounted tap with concealed function box, with concealed trap

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Replaces art. no. 111.566.00.1

Art. no.
111.566.00.2
B

50 cm

H

112 cm

Technical data

Product material

Steel

Height-adjustable

Yes

Application purposes

Click on an application purpose to search more products

For metal and wood frame wallsFor Geberit Duofix system wallsFor installation in part- or room-height prewallsFor installation in room-height partition walls
For floor constructions 0–25 cmFor installation of washbasinsFor Piave and Brenta washbasin taps, deck-mounted, with concealed function box

Characteristics

Click on a characteristic to search more products

2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingWith pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studsAlternative fastening point for wall anchorsRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosionFastening distance for washbasin 5–38 cmThreaded rods adjustable in depth with 18 or 28 cm fastening distance
Concealed trap with optimum flow guidance and high self-cleaning effectConcealed trap can be height-adjusted ± 3 cm during final installationIn-wall cabinet with straight connector made of PP, ø 50 mmWater supply connection compatible with MasterFix and MeplaFixWater supply connection on the bottom of concealed housingFastening for connection bend, height-adjustable and sound-absorbingConcealed housing for Geberit washbasin tap, deck-mounted, for concealed function box, premountedShut-off unit integrated in the concealed housingTerminal for electrical connection in concealed housing

Scope of delivery

  • 2 wall anchors

  • Protection box

  • Protection box with cover, for concealed housing

  • Fastening material

Accessories

Geberit sound insulation set for washbasin

Accessories

Geberit sound insulation set for washbasin

156.051.00.1

Geberit Duofix system fastening bracket

Accessories

Geberit Duofix system fastening bracket

111.846.00.1

Geberit Duofix fastening for washbasins with fastening distance 38–58 cm

Accessories

Geberit Duofix fastening for washbasins with fastening distance 38–58 cm

111.868.00.1

Geberit Duofix fastening material for stud clearance 50–57.5 cm

Accessories

Geberit Duofix fastening material for stud clearance 50–57.5 cm

111.869.00.1

Geberit Duofix set of wall anchors for single installation, corner construction

Accessories

Geberit Duofix set of wall anchors for single installation, corner construction

111.835.00.1

Geberit Duofix set of wall anchor extensions

Accessories

Geberit Duofix set of wall anchor extensions

111.887.00.1

Geberit Duofix set of foot fastener on rear wall

Accessories

Geberit Duofix set of foot fastener on rear wall

111.064.00.1

Replaces art. no. 111.867.00.1

Reinforcing sheet for Geberit Duofix frame for washbasin

Accessories

Reinforcing sheet for Geberit Duofix frame for washbasin

111.040.00.1

Geberit Duofix set of foot extensions 20 cm length

Accessories

Geberit Duofix set of foot extensions 20 cm length

111.848.00.2

Replaces art. no. 111.848.00.1
