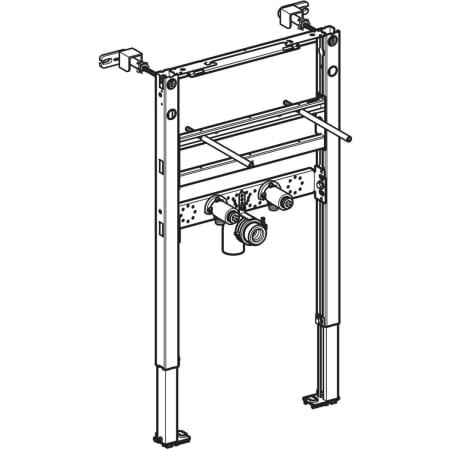

Geberit Duofix element for washbasin, 82–98 cm, deck-mounted tap, wall anchoring
My list (0)
Technical data
Product material Steel |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingAlternative fastening point for wall anchorsRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosion
Fastening distance for washbasin 5–38 cmThreaded rods adjustable in depth with 18 or 28 cm fastening distanceFastening for connection bend, height-adjustable and sound-absorbingCrossbar for tap adjustable in height and depthSelf-adhesive sealing washer, fleece-laminatedProtection plug for one-time pressure test with cold water up to a maximum of 15 bar / 1500 kPa
Scope of delivery
2 angle stop valves 1/2"
2 elbow tap connectors Rp 1/2" / R 1/2", compatible with MF
2 sealing washers
2 wall anchors
Fastening and protection material
Documents
Your input does not return any results
Spare parts
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 241.804.00.1 | Geberit Duofix crossbar for wall-mounted tap | Not for elements with width 44 cm | |
| 2 | 111.892.00.1 | Geberit Duofix hexagon head setscrew, self-cutting | Multipack | |
| 3 | 241.059.00.1 | Geberit set of threaded rods M10 (2 pc.) | ||
19 Articles
