Frames for WCs

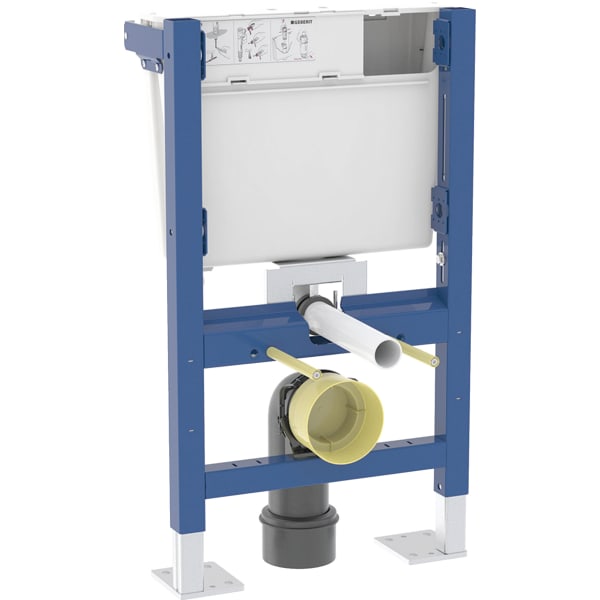

Geberit Duofix element for wall-hung WC, 79 cm, with low-height concealed cistern

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Replaces art. no. 111.207.00.2

Art. no.
111.207.00.3
B

46.5 cm

H

79 cm

T

19.5–31.5 cm

Technical data

Flow pressure

0.1–10 bar

Water temperature max.

25 °C

Flush volume, factory setting

5.8 / 3 l

Product material

Steel

Height-adjustable

Yes

Application purposes

Click on an application purpose to search more products

For metal and wood frame wallsFor installation in part-height prewallsFor installation in bathroom furnitureFor floor constructions 0–18 cm
For wall-hung WCsNot suitable for Geberit AquaClean AlbaNot suitable for Geberit AquaClean Sela

Characteristics

Click on a characteristic to search more products

2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingFrame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cmWith large foot plates for raised power supply in floorsGalvanised leg supports protected against corrosionConnection bend can be mounted without tools
Cistern with low installation heightPneumatic flush actuation, suitable for dual flushFlush pipe connection with compression jointWater supply connection on the bottom leftWater supply connection 1/2”

Scope of delivery

  • Connection bend 90° made of PE-HD, ø 90 mm

  • Adaptor socket made of PE-HD, ø 90 / 110 mm

  • Cup for flush volume reduction 4.0 / 2.6 l

  • Fastening and protection material

To order additionally

Accessories

Geberit set of support brackets for WC ceramic appliances with small contact surfaces

Accessories

Geberit set of support brackets for WC ceramic appliances with small contact surfaces

111.847.00.1
