Replaces art. no. 111.004.00.3
| Art. no. | 111.004.00.4 |
| B | 50 cm |
| H | 82 cm |

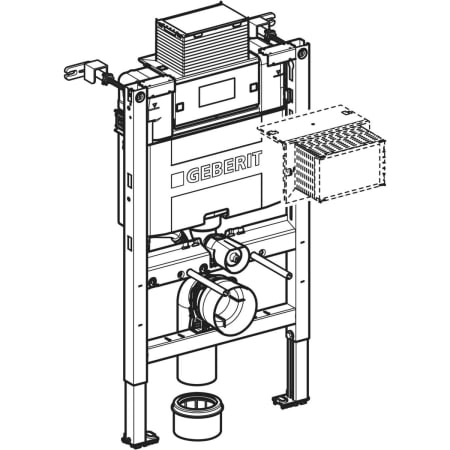

Geberit Duofix element for wall-hung WC, 82 cm, with Omega concealed cistern 12 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 5.8 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Flow rate at 300 kPa / 3 bar 0.16 l/s |
Minimum flow pressure 0.1 bar |
Calculated flow rate 0.09 l/s |
Product material Steel |
Height-adjustable Yes |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 5.8 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Flow rate at 300 kPa / 3 bar 0.16 l/s |
Minimum flow pressure 0.1 bar |
Calculated flow rate 0.09 l/s |
Product material Steel |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingFrame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 70 cmFrame with ø 9 mm drilling holes for fastening in wood frame constructionRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosionConnection bend can be mounted without tools at different depths, adjustable range 45 mmGeberit Omega concealed cistern 12 cm, fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class IIFor top or front actuation, suitable for dual flushImmediate post flush possible with factory settingTool-free installation and maintenance work on concealed cisternWater supply connection on the left or rear leftComponents in contact with drinking water lead-freeProtection box for service opening, can be cut to length, protects against moisture and dirtWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening for electrical connection and Power & Connect Box
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
2 wall anchors
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adaptor socket made of PE-HD, ø 90 / 110 mm
245.746.00.1 - Pull Disc f flV Type 212
Fastening and protection material
Accessories
Accessory overviews
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Declaration of performance | DoP14 Cistern | EN and 30 others | |
Installation instructions | Connection set for wall-hung WC | - | |
Installation instructions | Pull disc | - | |
Installation instructions | Geberit Duofix WC Omega 12 cm, height 82 | - |
DoP14 Cistern
EN and 30 others
Connection set for wall-hung WC
Pull disc
Geberit Duofix WC Omega 12 cm, height 82
