Frames for WCs

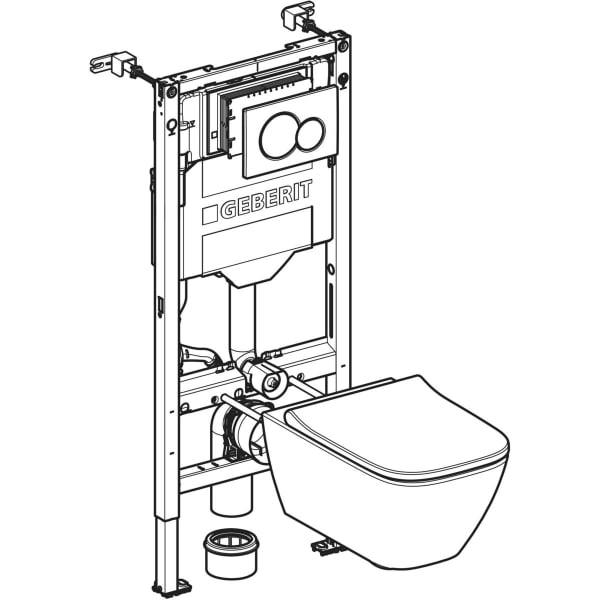

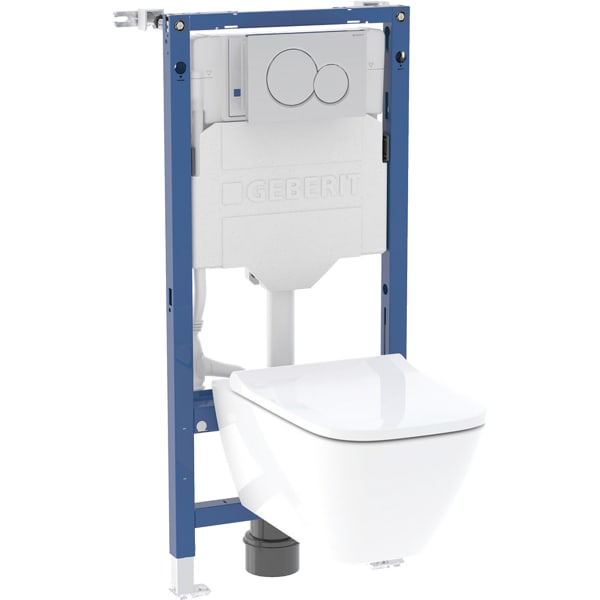

Geberit Duofix set of element for wall-hung WC, 112 cm, with Sigma concealed cistern 12 cm, Sigma01 flush plate, round, Smyle wall-hung WC, square design, Rimfree

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Replaces art. no. 118.349.21.1

Art. no.
118.349.21.2
Colour / surface

chrome / glossy

B

50 cm

Technical data

Flow pressure

0.1–10 bar

Water temperature max.

25 °C

Flush volume, factory setting

5.8 / 3 l

Button shape

round

Product material

Vitreous china

Fastening distance

18 cm

Height-adjustable

Yes

Odour extraction unit

No

Application purposes

Click on an application purpose to search more products

For metal and wood frame wallsFor Geberit Duofix system wallsFor installation in part- or room-height prewallsFor installation in room-height partition walls
For floor constructions 0–25 cm

Characteristics

Click on a characteristic to search more products

2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingFrame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 70 cmWith pull-out plate for lateral fastening above the element on metal or wood profiles or on Geberit Duofix system studsAlternative fastening point for wall anchorsRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosionConnection bend can be mounted without tools at different depths, adjustable range 45 mmGeberit Sigma concealed cistern 12 cm, fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class IIDual flushFront actuationImmediate post flush possible with factory settingTool-free installation and maintenance work on concealed cisternWater supply connection on the rear or top centreProtection box for service opening, can be cut to length, protects against moisture and dirtWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connectionWashdown WC

Scope of delivery

  • Geberit Duofix element for wall-hung WC

  • Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel

  • Protection box for service opening

  • 2 wall anchors

  • Connection set for WC, ø 90 mm

  • Connection bend 90° made of PE-HD, ø 90 mm

  • Adaptor socket made of PE-HD, ø 90 / 110 mm

  • Sound insulation set

  • Fastening and protection material

  • 115.770.21.5 - a-pl Sigma01 rnd dual pl bright chrome

  • 500.683.00.2 - wWCwd w/WC-st Ge+Smy T54 Rfree QRel set
