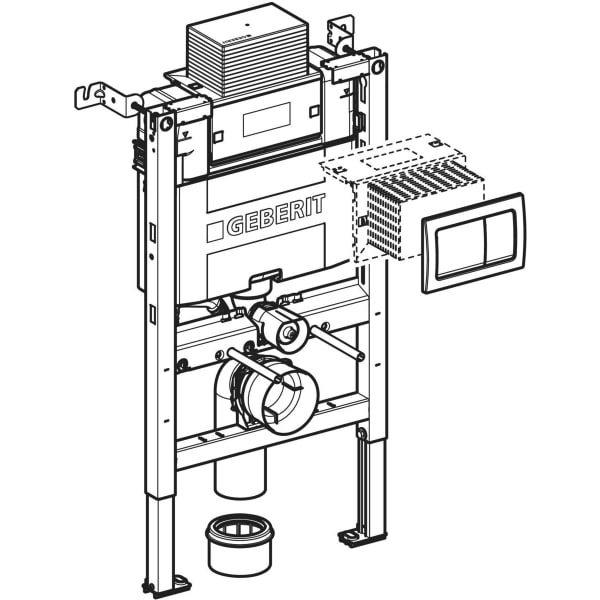

Geberit Duofix element for wall-hung WC, 82 cm, with Alpha concealed cistern 12 cm, 6/3 litres, Alpha01 (ex Alpha30) flush plate, square
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Operating temperature, water max. 25 °C |
Flush volume, factory setting 5.8 / 3 l |
Flush volume small, adjustment range 3–4 l |
Button shape square |
Product material Steel |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingFrame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cmFrame with ø 9 mm drilling holes for fastening in wood frame constructionFoot plates made of plasticFoot plate depth suitable for installation in U-profiles UW 50Galvanised leg supports protected against corrosionConnection bend can be mounted without tools
Geberit Alpha concealed cistern 12 cm fully insulated against condensationCistern fulfils standard requirements in accordance with EN 14055, Class IIFor top or front actuation, suitable for dual flushImmediate post flush possible with factory settingWater supply connection on the leftProtection box for service opening, can be cut to length, protects against moisture and dirtWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connection
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
2 wall anchors
Geberit Alpha01 (ex Alpha30) flush plate for dual flush, square
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Geberit pull disc for Type 212 flush valve for Omega concealed cistern 82 cm
Adaptor socket made of PE-HD, ø 90 / 110 mm
Fastening and protection material
Documents
Your input does not return any results
Spare parts
Geberit Duofix elements for wall-hung WC, with Alpha concealed cistern 12 cm
Geberit Duofix elements for wall-hung WC, with Alpha concealed cistern 12 cm
2021 -
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 2 | 111.839.00.2 | Geberit DuofixBasic set of wall anchors for single installation (2 pc.) | 111.839.00.1, 458.023.00.1 | From 2025 range |
| 4 | 240.189.00.1 | Geberit set of threaded rods M12 (2 pc.): M=12mm | ||
| 5 | 362.771.00.1 | Geberit lip seal for flush pipe: d=45mm | ||
