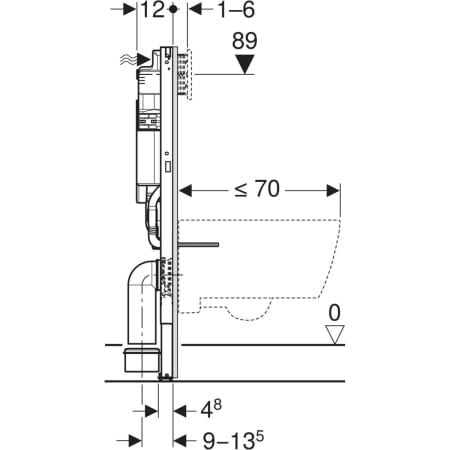

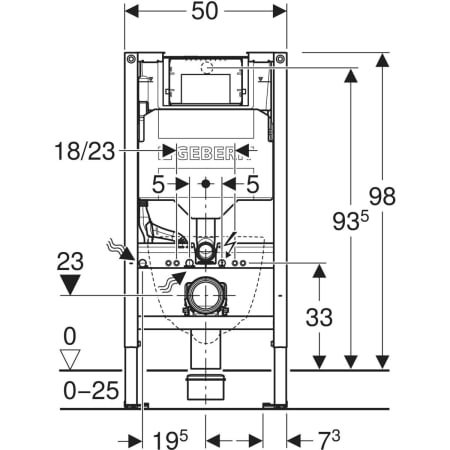

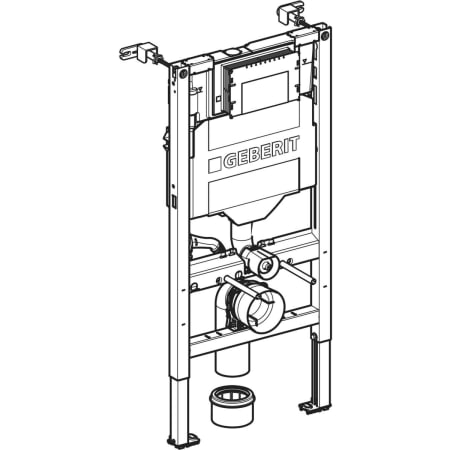

Geberit Duofix element for wall-hung WC, 98 cm, with Sigma concealed cistern 12 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 5.8 / 3 l |
Flush volume small, adjustment range 2–4 l |
Product material Steel |
Height-adjustable Yes |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingFrame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 70 cmRotating foot plates, suitable for installation in U profiles UW 50 and UW 75Foot plates that can be mounted in Geberit Duofix system rail without tools, without additional componentsGalvanised non-slip leg supports protected against corrosionConnection bend can be mounted without tools at different depths, adjustable range 45 mmGeberit Sigma concealed cistern 12 cm, fully insulated against condensationCistern fulfils standard requirements in accordance with EN 14055, Class II
For front actuation, suitable for single, dual and stop-and-go flushesImmediate post flush possible with factory settingTool-free installation and maintenance work on concealed cisternFlush bend fittedCistern rotatable by 180° for access from service roomWater supply connection on the rear centreProtection box for service opening, can be cut to length, protects against moisture and dirtWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connection
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
2 wall anchors
Connection set for WC, ø 90 mm
Connection bend 90° made of PE-HD, ø 90 mm
Adaptor socket made of PE-HD, ø 90 / 110 mm
Fastening and protection material
Documents
Your input does not return any results
Films
Spare parts
Geberit Duofix frames for wall-hung WC, with Sigma concealed cistern 12 cm (UP320)
Geberit Duofix frames for wall-hung WC, with Sigma concealed cistern 12 cm (UP320)
2002 -
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1 | 241.869.00.1 | Installation accessories for Geberit Duofix frame for wall-hung WC, with Sigma concealed cistern 12 cm | ||
| 1 | 241.869.00.2 | Installation accessories for Geberit Duofix element for wall-hung WC, pipe bracket with fastening distance 49 / 77 mm and with tool-free depth adjustment | From 2025 range | |
| 2 | Go to the spare parts page: | |||
