Frames for WCs

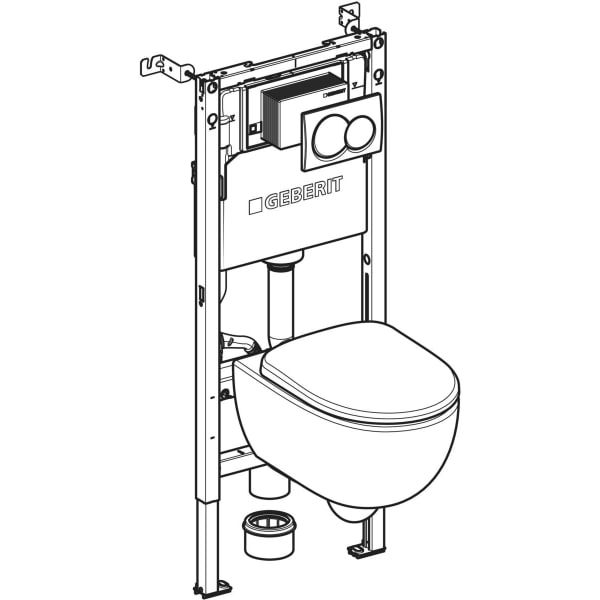

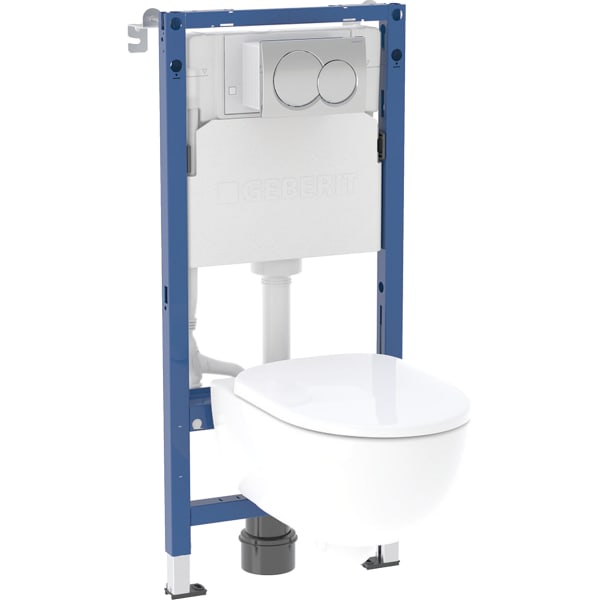

Geberit Duofix element for wall-hung WC, 112 cm, with Alpha concealed cistern 12 cm, 5.8 / 3 litres, Alpha01 flush plate, round, Selnova wall-hung WC, Rimfree

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
118.362.21.2
Colour / surface

chrome / glossy

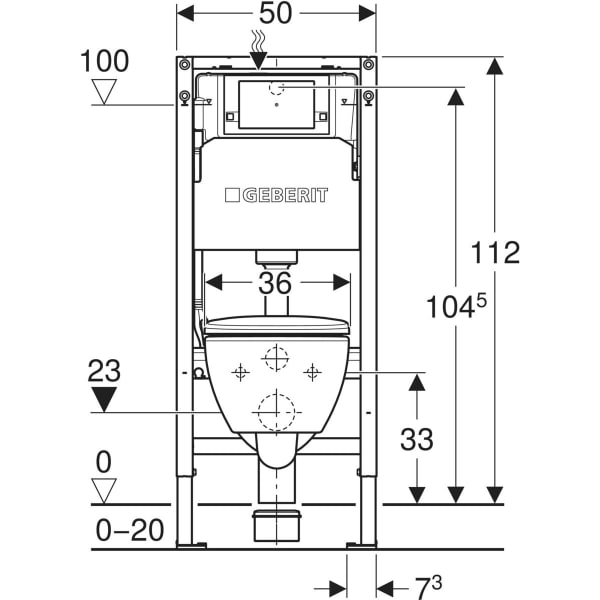

B

50 cm

Technical data

Flow pressure

0.1–10 bar

Water temperature max.

25 °C

Flush volume, factory setting

5.8 / 3 l

Flush volume large, adjustment range

4 / 4.5 / 6 / 7.5 l

Flush volume small, adjustment range

2–4 l

Button shape

round

Product material

Vitreous china

Fastening distance

18 cm

Height-adjustable

Yes

Odour extraction unit

No

Application purposes

Click on an application purpose to search more products

For metal and wood frame wallsFor installation in part- or room-height prewallsFor installation in room-height partition wallsFor floor constructions 0–20 cm

Characteristics

Click on a characteristic to search more products

2025 rangeStatically self-supporting frame, protected against corrosion with powder coatingFrame for wall-hung WCs with connection dimensions as per EN 33 and projection up to 62 cmAlternative fastening point for wall anchorsFoot plates made of plasticFoot plate depth suitable for installation in U-profiles UW 50Galvanised leg supports protected against corrosionConnection bend can be mounted without toolsGeberit Alpha concealed cistern 12 cm fully insulated against condensationCistern fulfils standard requirements in accordance with EN 14055, Class IIFor front actuation, suitable for dual flushImmediate post flush possible with factory settingWater supply connection on the rear or top centre
Protection box for service opening, can be cut to length, protects against moisture and dirtWith conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cableFastening option for electrical connectionWashdown WCWall-hungRimless WC ceramic appliance featuring Rimfree flush technologyEasy fastening with Easy Fast Fixing (type EFF3)Type 1, full flush volume 6 / 5 / 4 l, in accordance with EN 997ShroudedWC seat made of Duroplast4 l flushOverlapping WC lid

Scope of delivery

  • Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring

  • Protection box for service opening

  • 2 wall anchors

  • 2 fixing brackets

  • 115.035.21.1 - a-pl Alpha01 rnd dual pl bchr

  • Connection set for WC, ø 90 mm

  • Connection bend 90° made of PE-HD, ø 90 mm

  • Adaptor socket made of PE-HD, ø 90 / 110 mm

  • Fastening and protection material

  • 502.793.00.1 - wWCwd Pr m/WC-Sz Ge+Snv T53 Shr Rf QRset
