Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 82 cm

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

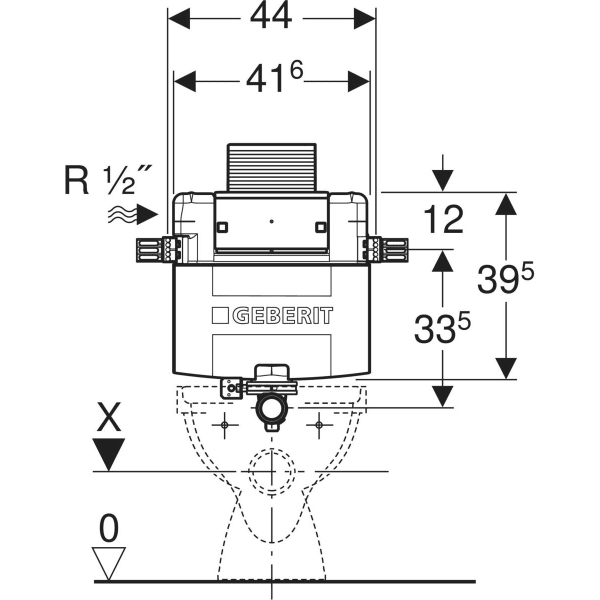

Art. no.	109.002.00.1
B	41.6 cm
H	39.5 cm

Technical data

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Water temperature max.	25 °C	Water temperature max. 25 °C
Flush volume, factory setting	5.8 / 3 l	Flush volume, factory setting 5.8 / 3 l
Full flush volume, adjustment range	4 / 4.5 / 6 / 7.5 l	Full flush volume, adjustment range 4 / 4.5 / 6 / 7.5 l

Flush volume small, adjustment range	2–4 l	Flush volume small, adjustment range 2–4 l
Product material	Plastic	Product material Plastic

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Water temperature max.	25 °C	Water temperature max. 25 °C
Flush volume, factory setting	5.8 / 3 l	Flush volume, factory setting 5.8 / 3 l
Full flush volume, adjustment range	4 / 4.5 / 6 / 7.5 l	Full flush volume, adjustment range 4 / 4.5 / 6 / 7.5 l
Flush volume small, adjustment range	2–4 l	Flush volume small, adjustment range 2–4 l
Product material	Plastic	Product material Plastic

Application purposes

Click on an application purpose to search more products

For masonry walls For installation in part-height prewall installations For floor-standing and wall-hung WCs

Characteristics

Click on a characteristic to search more products

Adjustable in depth Geberit Alpha concealed cistern 12 cm fully insulated against condensation For top or front actuation, suitable for dual flush Immediate post flush possible with factory setting

Cistern fulfils standard requirements in accordance with EN 14055, Class II Welded flush bend Water supply connection on the left or rear left Protection box for service opening, can be cut to length, protects against moisture and dirt

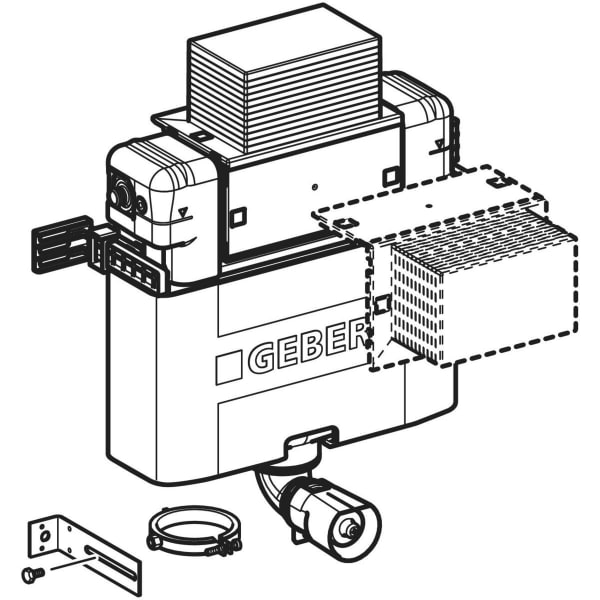

Scope of delivery

Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
Flush bend extension, ø 45 mm
Fastening for flush bend

2 fixing brackets
Fastening and protection material
245.746.00.1 - Pull Disc f flV Type 212

Documents

Document type	Documents	Language
Declaration of performance	DoP14 Cistern	EN and 30 others
Declaration of performance	DoP14 cisterns	EN
Installation instructions	Pull disc	-
Installation instructions	Concealed cistern Alpha 12 cm, height 82	-

DoP14 Cistern

EN and 30 others

DoP14 cisterns

Pull disc

Concealed cistern Alpha 12 cm, height 82

Other products

Concealed Cisterns

Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 109 cm

109.012.00.1

Concealed Cisterns

Geberit Alpha concealed cistern set 12 cm, 5.8 / 3 litres, installation height 109 cm, with Alpha01 flush plate, round, Selnova floor-standing WC, back-to-wall, Rimfree

118.363.21.2

Concealed Cisterns

Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 109 cm, with Alpha01 flush plate, round

109.014.21.1

Concealed Cisterns

Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 109 cm, with Alpha01 flush plate, square

109.013.21.1

Concealed Cisterns

Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 82 cm, with Alpha01 flush plate, square

109.003.21.1

Concealed Cisterns

Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 82 cm, with Alpha01 flush plate, round

109.004.21.1

Spare parts

Alpha concealed cisterns 12 cm

2021 -

#	Art. no.	Description
1	242.414.00.1	Geberit angle stop valve for Sigma concealed cistern 8 cm, Delta concealed cistern 12 cm, Alpha concealed cisterns 8/12 cm and Unica/UP700 concealed cisterns: G=1/2″
1.1	240.298.00.1	Geberit spindle for angle valve with handwheel, left thread
1.2	240.347.00.1	Geberit hand wheel for angle stop valve
