| Art. no. | 109.004.21.1 |
| Colour / surface | chrome / glossy |

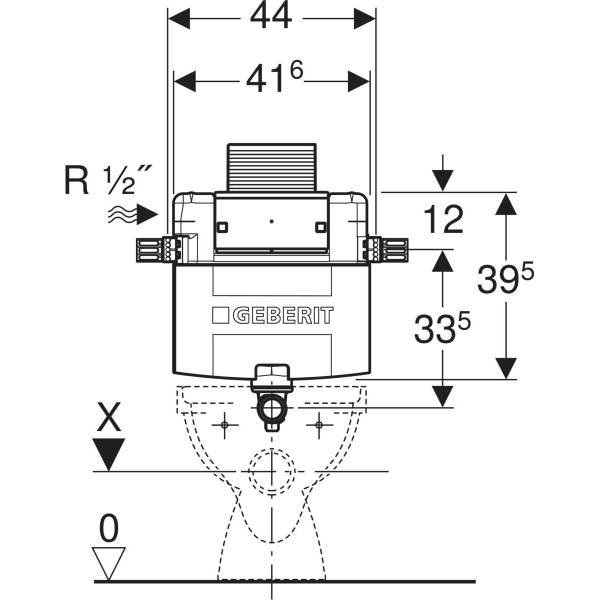

| B | 41.6 cm |
Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 82 cm, with Alpha01 flush plate, round
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 5.8 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Button shape round |
Product material Plastic |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 5.8 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Button shape round |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
Protection box for service opening
115.035.21.1 - a-pl Alpha01 rnd dual pl bchr
Flush bend extension, ø 45 mm
Protection plug
245.746.00.1 - Pull Disc f flV Type 212
2 fixing brackets
Fastening material
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Care instructions | Cleaning surfaces | EN and 28 others | |
Declaration of performance | DoP14 Cistern | EN and 30 others | |
Declaration of performance | DoP14 cisterns | EN | |
Installation instructions | Alpha actuator plates | - | |
Installation instructions | Pull disc | - | |
Installation instructions | Concealed cistern Alpha 12 cm, height 82 | - |
Cleaning surfaces
EN and 28 others
DoP14 Cistern
EN and 30 others
DoP14 cisterns
EN
Alpha actuator plates
Pull disc
Concealed cistern Alpha 12 cm, height 82
