| Art. no. | 109.012.00.1 |
| B | 44 cm |
| H | 39.5 cm |

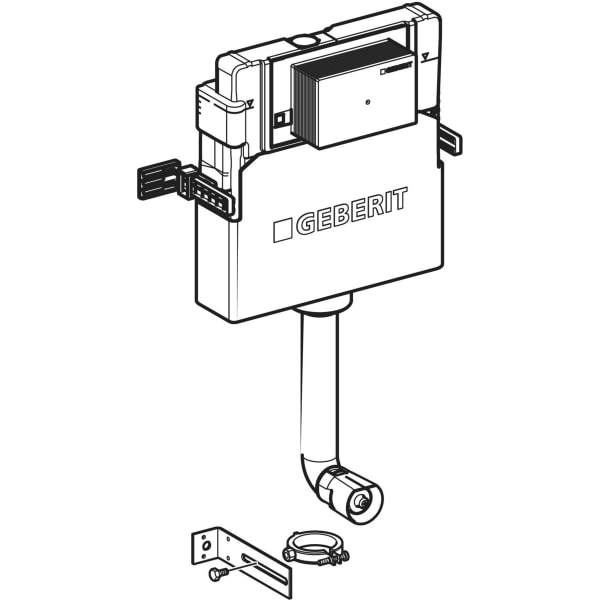

Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 109 cm
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 5.8 / 3 l |
Full flush volume, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Plastic |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 5.8 / 3 l |
Full flush volume, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
Protection box for service opening
Fastening for flush bend
Flush bend extension, ø 45 mm
2 fixing brackets
Fastening and protection material
Documents
| Document type | Documents | Language | |
|---|---|---|---|
Declaration of performance | DoP14 Cistern | EN and 30 others | |
Declaration of performance | DoP14 cisterns | EN | |
Installation instructions | Concealed cistern Alpha 12 cm, height 108 | - |
DoP14 Cistern
EN and 30 others
DoP14 cisterns
EN
Concealed cistern Alpha 12 cm, height 108
Other products
Spare parts
| # | Art. no. | Description | Replacement for | Remarks |
|---|---|---|---|---|
| 1.1 | 240.925.00.1 | Geberit spindle for angle stop valve | ||
| 1.2 | 241.857.00.1 | Geberit counternut made of plastic | ||
| 2 | 241.982.00.1 | Geberit reinforced braided hose | 241.463.00.1 | |
