Alpha concealed cisterns

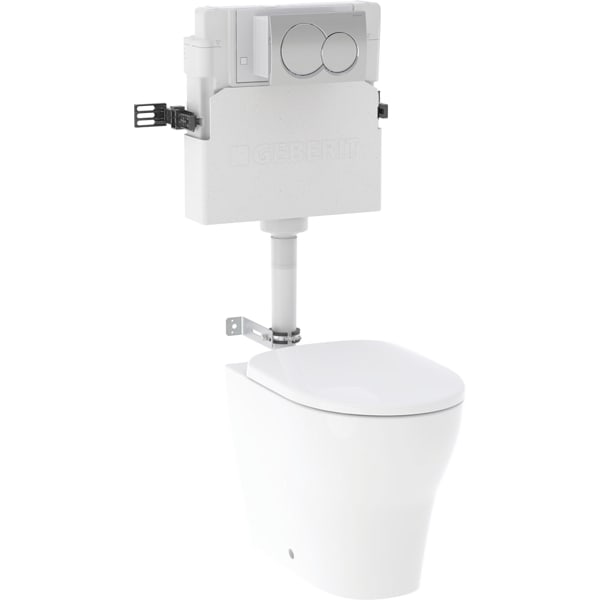

Geberit Alpha concealed cistern set 12 cm, 5.8 / 3 litres, installation height 109 cm, with Alpha01 flush plate, round, Selnova floor-standing WC, back-to-wall, Rimfree

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.
118.363.21.2
Colour / surface

chrome / glossy

B

41.6 cm

Technical data

Flow pressure

0.1–10 bar

Water temperature max.

25 °C

Flush volume, factory setting

5.8 / 3 l

Button shape

round

Product material

Vitreous china

Application purposes

Click on an application purpose to search more products

For masonry wallsFor installation in part or room-height prewall installationsFor installation in room-height installation walls

Characteristics

Click on a characteristic to search more products

Geberit Alpha concealed cistern 12 cm fully insulated against condensationFor front actuation, suitable for dual flushCistern fulfils standard requirements in accordance with EN 14055, Class IIImmediate post flush possible with factory settingFlush bend fittedWater supply connection on the rear or top centreConnection hose on angle stop valve can be attached without toolsWashdown WCFloor-standing
Back-to-wallRimless WC ceramic appliance featuring Rimfree flush technologyType 1, full flush volume 6 / 5 / 4 l, in accordance with EN 9974 l flushHorizontal or vertical outletShroudedHidden fasteningWC seat made of DuroplastOverlapping WC lid

Scope of delivery

  • Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring

  • Protection box for service opening, made of polystyrene foam

  • 115.035.21.1 - a-pl Alpha01 rnd dual pl bchr

  • 2 distance bolts

  • Flush bend 90°

  • Protection plug

  • Fastening for flush bend

  • Flush bend extension, ø 45 mm

  • 2 fixing brackets

  • Fastening material

  • 502.794.00.1 - fWCwd BTW Pr w/WC-st Ge+Snv Shrd Rfr QR

Documents

WC and bidet seats, urinal lids

EN and 31 others

Cleaning surfaces

EN and 28 others

DoP10 WCs

EN and 29 others

DoP14 Cistern

EN and 30 others

DoP10 WCs

EN

DoP14 cisterns

EN

L-fastening from below

EN and 5 others

L-fastening from below
Soft close
Fastening from above
Quick release
L-fastening from below
Fastening set for floor-standing ceramic pans
L-fastening from below
Alpha actuator plates
Concealed cistern Alpha 12 cm, height 108
