| Art. no. | 109.014.21.1 |
| Colour / surface | chrome / glossy |
| B | 44 cm |

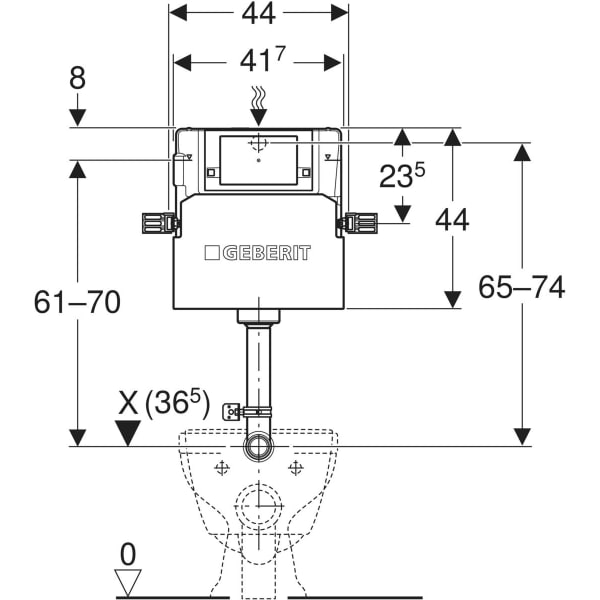

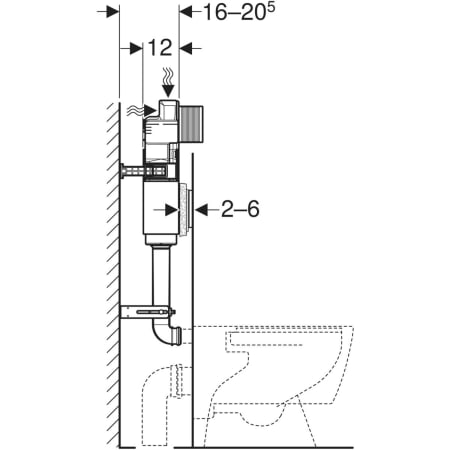

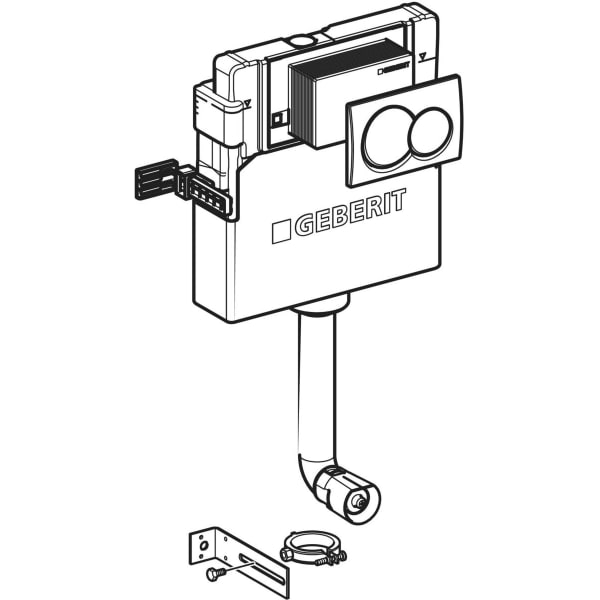

Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 109 cm, with Alpha01 flush plate, round
My list (0)
Technical data
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 5.8 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Button shape round |
Product material Plastic |
Flow pressure 0.1–10 bar |
Water temperature max. 25 °C |
Flush volume, factory setting 5.8 / 3 l |
Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l |
Flush volume small, adjustment range 2–4 l |
Button shape round |
Product material Plastic |
Application purposes
Click on an application purpose to search more products
Characteristics
Click on a characteristic to search more products
Scope of delivery
Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
Protection box for service opening
115.035.21.1 - a-pl Alpha01 rnd dual pl bchr
Fastening for flush bend
Flush bend extension, ø 45 mm
Protection plug
2 fixing brackets
Fastening material
