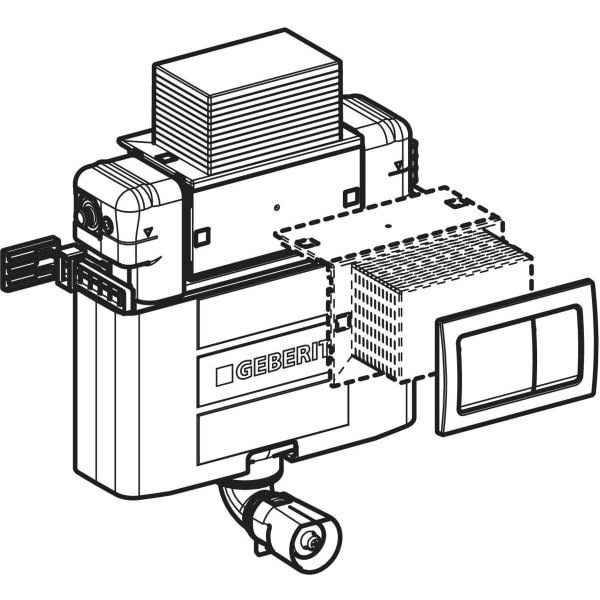

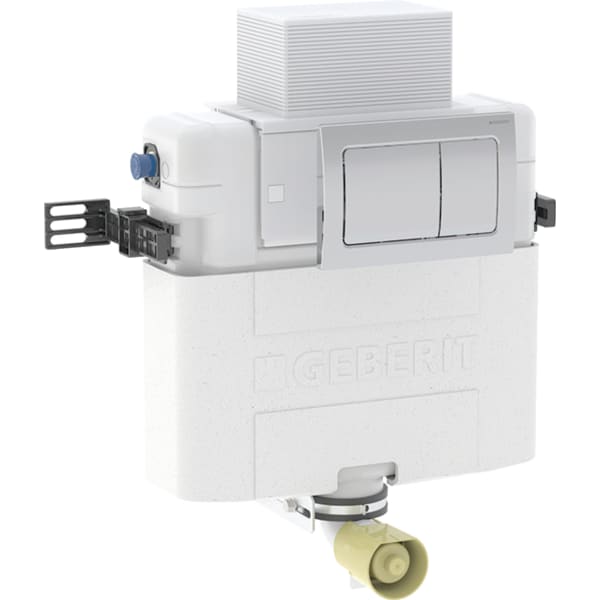

Geberit Alpha concealed cistern 12 cm, 6/3 litres, installation height 82 cm, with Alpha01 flush plate, square

Sections:

Thumbnail image
Thumbnail image
Thumbnail image
Thumbnail image
Main gallery image
Main gallery image
Main gallery image
Main gallery image

My list (0)


Articles

Click on the icon with the 3 dots to have more options for each item.

Technical data

Flow pressure

0.1–10 bar

Operating temperature, water max.

25 °C

Flush volume, factory setting

5.8 / 3 l

Flush volume small, adjustment range

3–4 l

Button shape

square

Product material

Plastic

Application purposes

Click on an application purpose to search more products

Characteristics

Click on a characteristic to search more products

Scope of delivery

  • Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel

  • Protection box for service opening

  • Geberit Alpha01 (ex Alpha30) flush plate for dual flush, square

  • Flush bend extension, ø 45 mm

  • Protection plug

  • Geberit pull disc for Type 212 flush valve for Omega concealed cistern 82 cm

  • 2 fixing brackets

  • Fastening material

Documents

Your input does not return any results

Document typeDocumentsLanguage

Cleaning surfaces

EN and 28 others

DoP14 cisterns

EN

DoP14 Cistern

EN and 30 others

Concealed cistern Alpha 12 cm, height 82

Alpha actuator plates

Pull disc
