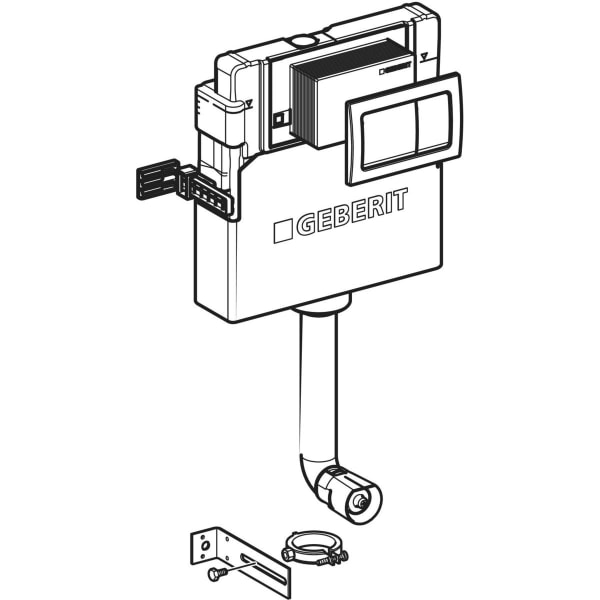

Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 109 cm, with Alpha01 flush plate, square

My list (0)

Articles

Click on the icon with the 3 dots to have more options for each item.

Art. no.	109.013.21.1
Colour / surface	chrome / glossy
B	44 cm

Technical data

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Water temperature max.	25 °C	Water temperature max. 25 °C
Flush volume, factory setting	5.8 / 3 l	Flush volume, factory setting 5.8 / 3 l
Full flush volume, adjustment range	4 / 4.5 / 6 / 7.5 l	Full flush volume, adjustment range 4 / 4.5 / 6 / 7.5 l

Flush volume small, adjustment range	2–4 l	Flush volume small, adjustment range 2–4 l
Button shape	square	Button shape square
Product material	Plastic	Product material Plastic

Flow pressure	0.1–10 bar	Flow pressure 0.1–10 bar
Water temperature max.	25 °C	Water temperature max. 25 °C
Flush volume, factory setting	5.8 / 3 l	Flush volume, factory setting 5.8 / 3 l
Full flush volume, adjustment range	4 / 4.5 / 6 / 7.5 l	Full flush volume, adjustment range 4 / 4.5 / 6 / 7.5 l
Flush volume small, adjustment range	2–4 l	Flush volume small, adjustment range 2–4 l
Button shape	square	Button shape square
Product material	Plastic	Product material Plastic

Application purposes

Click on an application purpose to search more products

For masonry walls For installation in part or room-height prewall installations For installation in room-height installation walls For floor-standing and wall-hung WCs

Characteristics

Click on a characteristic to search more products

Adjustable in depth Geberit Alpha concealed cistern 12 cm fully insulated against condensation For front actuation, suitable for dual flush Immediate post flush possible with factory setting

Cistern fulfils standard requirements in accordance with EN 14055, Class II Flush bend fitted Water supply connection on the rear or top centre Protection box for service opening, can be cut to length, protects against moisture and dirt

Scope of delivery

Water supply connection unit R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and adapter ring
Protection box for service opening
115.055.21.1 - a-pl Alpha01 sq dual pl bright chr
Fastening for flush bend

Flush bend extension, ø 45 mm
Protection plug
2 fixing brackets
Fastening material

Documents

Document type	Documents	Language
Care instructions	Cleaning surfaces	EN and 28 others
Declaration of performance	DoP14 Cistern	EN and 30 others
Declaration of performance	DoP14 cisterns	EN
Installation instructions	Alpha actuator plates	-
Installation instructions	Concealed cistern Alpha 12 cm, height 108	-

Cleaning surfaces

EN and 28 others

DoP14 Cistern

EN and 30 others

DoP14 cisterns

Alpha actuator plates

Concealed cistern Alpha 12 cm, height 108

Other products

Concealed Cisterns

Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 82 cm

109.002.00.1

Concealed Cisterns

Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 109 cm

109.012.00.1

Concealed Cisterns

Geberit Alpha concealed cistern set 12 cm, 5.8 / 3 litres, installation height 109 cm, with Alpha01 flush plate, round, Selnova floor-standing WC, back-to-wall, Rimfree

118.363.21.2

Concealed Cisterns

Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 109 cm, with Alpha01 flush plate, round

109.014.21.1

Concealed Cisterns

Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 82 cm, with Alpha01 flush plate, square

109.003.21.1

Concealed Cisterns

Geberit Alpha concealed cistern 12 cm, 5.8 / 3 litres, installation height 82 cm, with Alpha01 flush plate, round

109.004.21.1

Spare parts

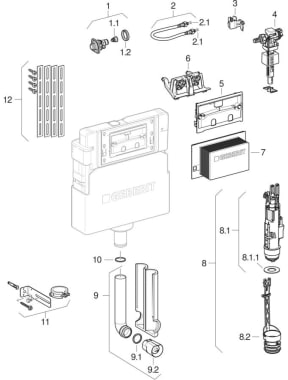

Alpha concealed cisterns 12 cm (from year of construction 2023)

2023 -

#	Art. no.	Description	Replacement for
1.1	240.925.00.1	Geberit spindle for angle stop valve
1.2	241.857.00.1	Geberit counternut made of plastic
2	241.982.00.1	Geberit reinforced braided hose	241.463.00.1

Open detail page
